nJoy WiFi LED Touch Programmable Thermostat
Part Number: UWG5-4999-WY
This support page provides publications, manuals, specifications, and videos
This support page provides publications, manuals, specifications, and videos
Publications and Manuals (18)
Specifications (46)
Videos (6)
Related Items (1)
Create a new Support Request
Publications and Manuals
Installation
nJoy Startup Guide UWG5-4999-WY (English, French)nJoy Startup Guide UWG5-4999-WY (English, Spanish)
nSpiration Electrical Rough-in Kit Installation (Single Gang Box with 2 Conduits) (English)
nSpiration Electrical Rough-in Kit Installation (Single Gang Box with Single Conduit) (English)
nSpiration Electrical Rough-in Kit Installation (Single Gang Box without Conduit) (English)
Operation Manuals
nJoy WiFi LED Touch Thermostat User Manual (English)nJoy WiFi LED Touch Thermostat User Manual (French)
nJoy WiFi LED Touch Thermostat User Manual (Spanish)
Wiring Diagrams
nSpiration Series Thermostat Wiring Diagram (120V & 240V) (English)nSpiration Series Thermostat Environ Wiring Diagrams (English)
nSpiration Series Thermostat TempZone Twin Wiring Diagrams (English)
Technical Support
Declaration of Conformity OJ - 1047 FCC IC statement (English)Environ™ Ohm Reading Guide (French)
Environ™ Ohm Reading Guide (Spanish)
TempZone™ Single Conductor Ohm Reading Guide (French)
TempZone™ Twin Conductor Ohm Reading Guide (French)
Specifications
Features
| 7 Day Programmable | true |
| Control Remotely via iPhone, iPad or Android | true |
| Energy Log | true |
| Setup Wizard | true |
Controls
| App Languages | English, French, Spanish |
Warranty / Certifications
Electrical
| Battery | 5 year battery backup of clock and calendar |
| Connection | 4 wires, double pole |
| Connection Method | Hardwired |
| Ground Fault Protection | GFCI, Class A, 5 mA |
| Maximum Current | 15 A |
| Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| Supply | 120 VAC, 208 VAC, 240 VAC (50/60Hz) |
Connectivity
| Bluetooth® | Version 4.2 (BDR/EDR/BLE) |
| Security | TLS 1.3 |
| Wi-Fi IEEE Standards | 802.11 b/g/n |
| Wi-Fi Radio Frequency Bands | 2.4 GHz |
| WiFi Encryption | WPA, WPA2, WPA3 |
| Works with | Hey Google or Amazon Alexa |
Appearance
| Color | White Acrylic |
| Display | LED Light Through |
Logistics
| Country of Origin (COO) | Malaysia |
Product Dimensions
| Depth | 1.73″ |
| Installed Depth | 0.46″ |
| Length | 4.98″ |
| Weight | 0.4 lbs |
| Width | 3.09″ |
Thermostat
| Floor Sensor Compatibility | 10k ohms, 12k ohms and custom |
| Includes Floor Sensor | 10k ohms, 15′ lead |
| Maximum Ambient Temperature Setting | 77 °F |
| Maximum Floor Temperature Setting | 104 °F |
| Minimum Ambient Temperature Setting | 32 °F |
| Minimum Floor Temperature Setting | 41 °F |
Identifiers
| SKU | UWG5-4999-WY |
| UPC (GTIN-12) | 881308076771 |
Videos
Item Videos

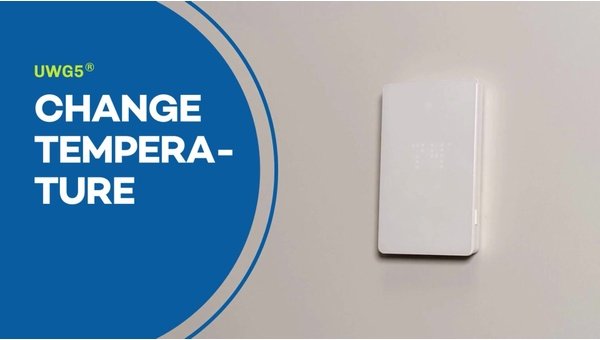

How to Operate the nJoy WiFi (UWG5) Thermostat without the App

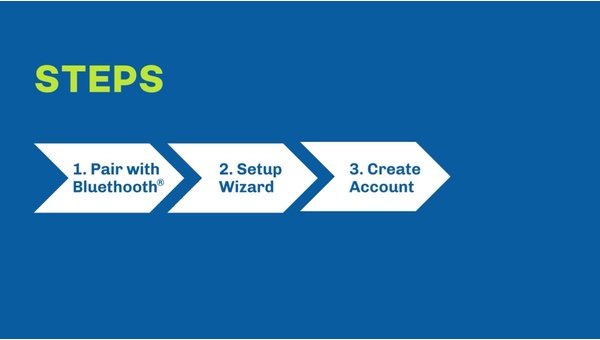

How to Setup/Reset the nJoy WiFi (UWG5) Thermostat with the App
How to connect a power module to nJoy WiFi (UWG5) thermostat

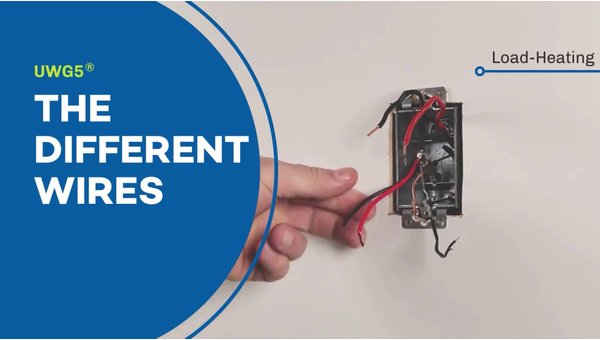

How to Install the nJoy WiFi (UWG5) Radiant Floor Heating Thermostat
How to Setup/Reset the nJoy WiFi (UWG5) Thermostat without the App
