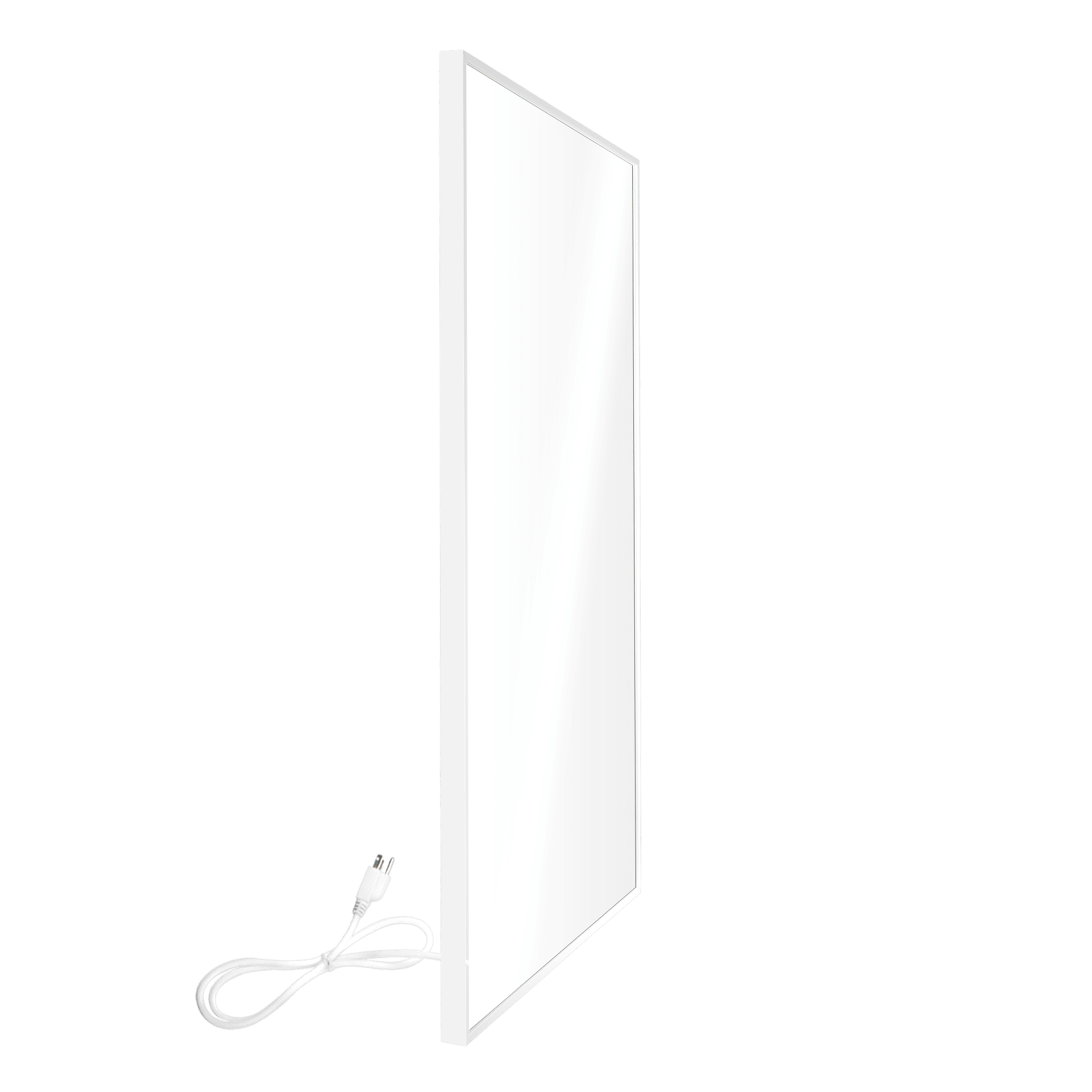

Ember Flex Radiant Panel Heater- White - 500W - 35ʺ x 24ʺ - Dual Connection
Features
-
Attractive Design: This beautiful white panel, with an integrated frame, is 35” by 24”
-
Flexibility: Can be installed on your wall, attached to your ceiling, or used with a stand accessory
-
High Heat Output: This panel delivers an impressive heat output of 1,705 BTUs per hour
-
Dual Connection: Can be used "as is" for a plug-in connection or the cord can be modified by a licensed electrician for a hardwired connection
-
Compatible Accessories: towel bar (IP-EM-ACC-BAR) and stand attachments (IP-EM-ACC-STND)
Ember Flex Radiant Panels Description
Infrared radiant heating panels, like the ones from our Ember Flex line, offer a unique and aesthetically pleasing, and safe, alternative to traditional space heaters. An Ember Flex radiant panel heater is an attractive and affordable way to add much needed supplemental warmth to hard to heat rooms in your home. These panels use infrared waves to efficiently transfer radiant energy to solid objects, which is similar to how the sun warms objects. With its white finish and integrated frame, this panel functions not only as a reliable heating device, but also as a design element. These panels are also dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
This panel is 35” by 24” and can be installed vertically or horizontally on your wall. Additionally, it can also be used horizontally with a low-profile stand accessory (sold separately—for plug-in models only) to create a movable heat source. This panel also comes with all of the hardware necessary to attach it to your ceiling. These panels are also unique in that they have one of the highest possible efficiency rates and consume the least amount of energy possible*.
These wall mounted electric heaters are covered by a 5-year limited warranty.
* Infrapower Manufacturing Ltd.
Features:

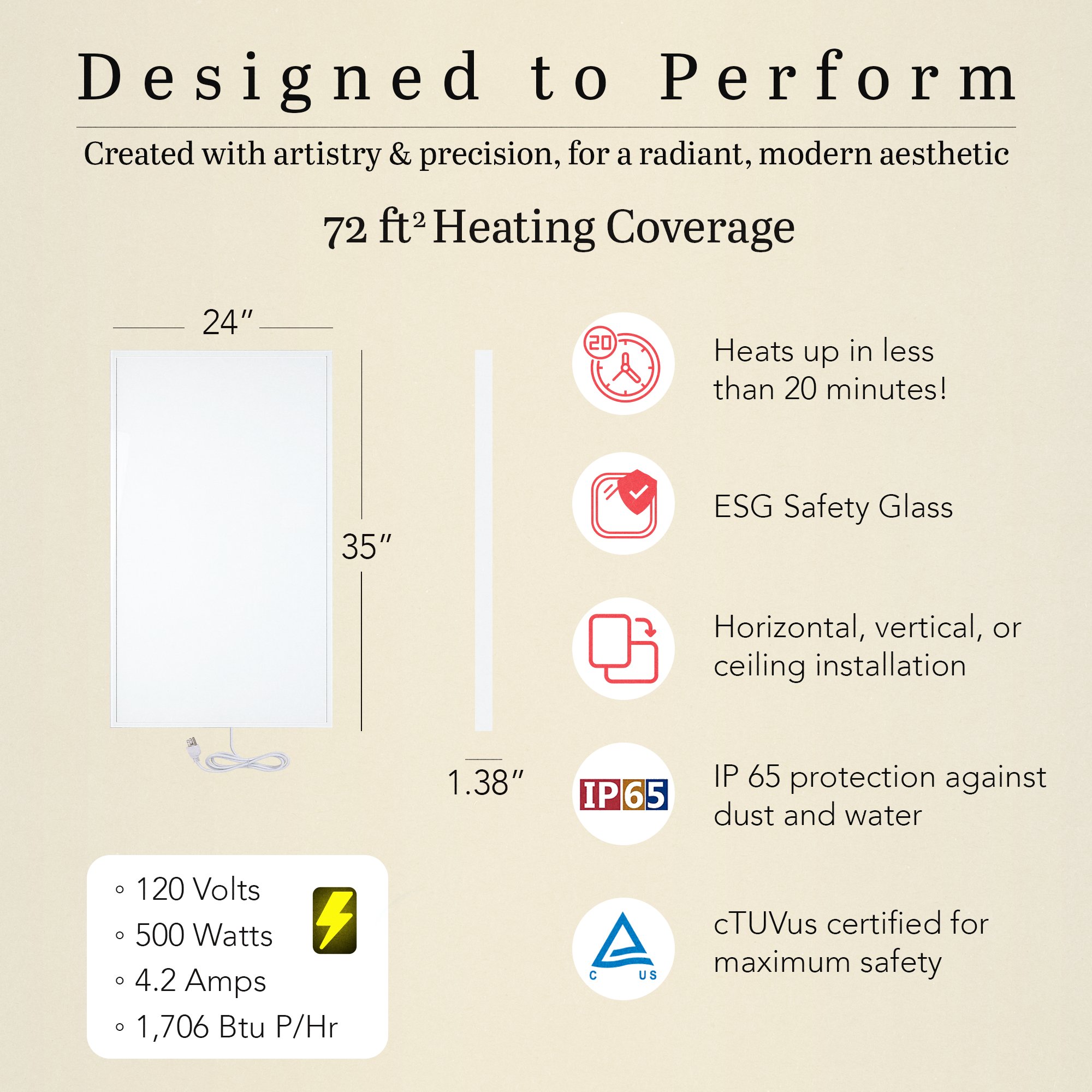

- Dimensions: 35” x 24” x 1.5”
- Can be hung on your wall, attached to your ceiling, or used with stand accessory
- Provides an impressive heat output of 1,705 BTUs per hour
- Dual connection (120 VAC) can be used plug-in or hardwired (with modification)
- Compatible accessories: towel bar (IP-EM-ACC-BAR) and stand attachments (IP-EM-ACC-STND)
Specifications
Electrical
| Amps | 4.17 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 6′ |
| Ohms | 28.78 Ω |
| On/Off Switch | No |
| Plug-Type | NEMA 5-15 (Type B) |
| Thermal Power | 0.5 kW |
| Voltage | 120 V |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| RoHS Compliance | 2002/95/EC (RoHS 1) |
| Warranty | 5 years |
Performance
| Average Surface Temperature | 194 °F |
| BTU Per Hour | 1706 Btu |
| Heating Coverage | 71 ft² |
| Surface Safety Limit | 248 °F |
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Depth | 0.98″ |
| Length | 35″ |
| Weight | 15.84 lbs |
| Width | 2′ |
Appearance
| Finish | White |
| Model | Ember Flex White - 35″ x 24″ |
| Size | 35″ x 24″ - 500W |
Installation
| Mounting Locations | Wall, Ceiling, or Freestanding (with Accessories) |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-FLX-WHT-0500-CW |
| UPC (GTIN-12) | 881308067083 |
Controls
A great control is the secret to any great heating system.
Accessories and Spare Parts
Feel free to chat us if you have any questions about these items.
Documents & Manuals
Installation
- Ember Mounting Template For IP-EM-FLX-WHT-0500-CW (35" X 24") and IP-EM-FLX-WHT-0700-CW (47" X 24") (English)
- Ember Radiant Panel Installation Manual (English)
Warranties
Sell Sheets
Catalogs
Customer Questions & Answers
Ember Flex Radiant Panels has 26 Questions and Answers.
How hot is the infrared heating system when in use?
The heater is very hot during use (up to 120° C or 248° F).
How far from the radiant panel will the heat substantially radiate and where should it be aimed?
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
Can an Ember radiant panel be mounted on the ceiling?
Only the Ember Flex radiant panels can be mounted from the ceiling and they come with all of the necessary hardware to accomplish this.
None of the radiant panel heaters from the Ember Glass or Ember Mirror lines can be mounted from the ceiling.
How do you keep a sunroom warm in the winter?
Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.
How quickly does the radiant panel heat up?
The startup heating time for this infrared heating system is approximately 5 to 10 minutes. However, your room will not feel warmer immediately because the cold objects in the room (furniture, walls, ceilings, floors, etc.) need to warm up first. Once these surfaces are heated via infrared heating, the warmth will spread throughout the room.
