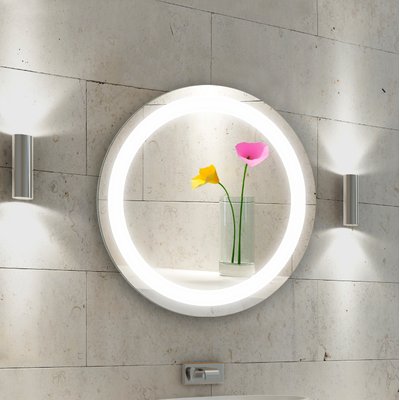

Marilyn LED Mirror – 24 in. – 120 VAC
Part Number: MIR-24RD-MRL
This support page provides publications, manuals, specifications, videos, and support articles
This support page provides publications, manuals, specifications, videos, and support articles
Publications and Manuals (6)
Specifications (26)
Videos (1)
Articles (6)
Similar Items (4)
Create a new Support Request
Publications and Manuals
Installation

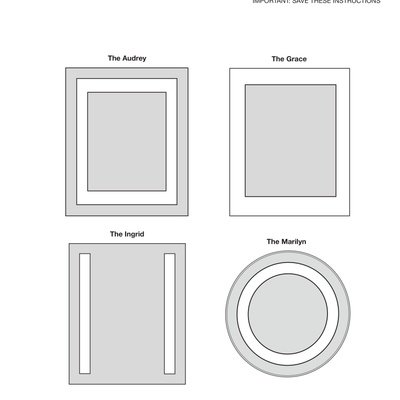

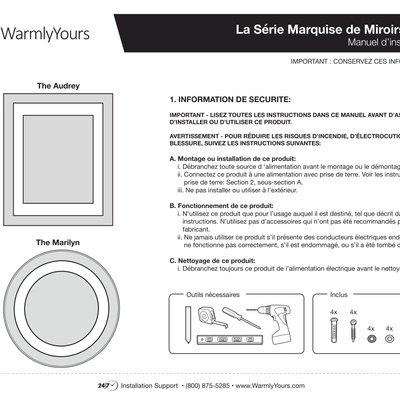

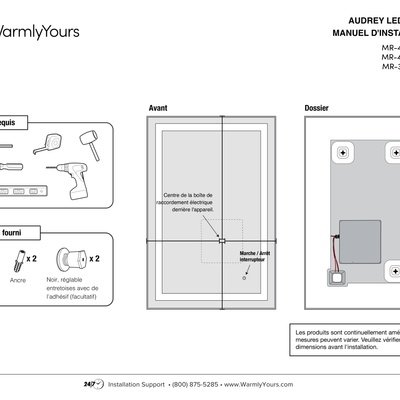

Audrey Installation Instructions (French)Led Mirror Marquee Series Install Manual Costco (French)

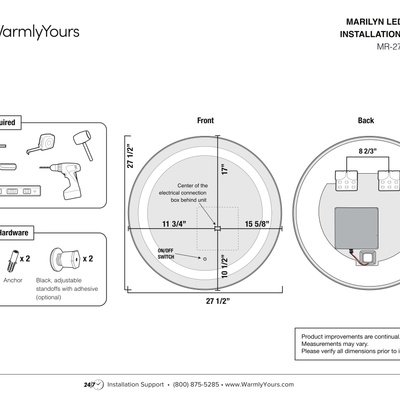

Marilyn LED Mirror Installation Instructions (English)
Specifications
Electrical
| Amps | 0.13 A |
| Connection Method | Hardwired |
| Frequency | 60 Hz |
| LED Light Bulb Life | 50,000 hours |
| Voltage | 120 V |
| Watts | 15 W |
Warranty / Certifications
| Approvals | cULus listed components |
| Ingress Protection (IPxx) Rating | IP44 |
| Warranty | 2 years |
Logistics
| Country of Origin (COO) | China |
| Package Contents | Mirror assembly, mounting kit, and installation manual |
Product Dimensions
| Depth | 2″ |
| Height | 24″ |
| Size | 24″ x 24″ |
| Width | 24″ |
Appearance
| LED Color Rendering Index (CRI) | 100 |
| LED Color Temperature | 5000K |
| Lumens | 1250 lm |
| Mirror Edge Type | Flat Polish |
| Mirror Thickness | 1.181″ |
| Shape | Circular |
Construction
| Mirror Material | Copper-free silver mirror |
Installation
| Mounting Location | Wall |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | MIR-24RD-MRL |
| UPC (GTIN-12) | 881308051556 |
Videos
Product Line Videos
Articles
Can Marquee LED Mirrors be powered by a dimmer?
Is the rear surface of the mirror accessible so a defogger can be attached? If so what would be the dimensions of the accessible area?
LED Mirror - No LED
Lumens Info for LED Mirrors
Lumidesign LED Mirror No Lights
Mounting LED mirrors, Recessed mounting
Is the rear surface of the mirror accessible so a defogger can be attached? If so what would be the dimensions of the accessible area?
LED Mirror - No LED
Lumens Info for LED Mirrors
Lumidesign LED Mirror No Lights
Mounting LED mirrors, Recessed mounting
