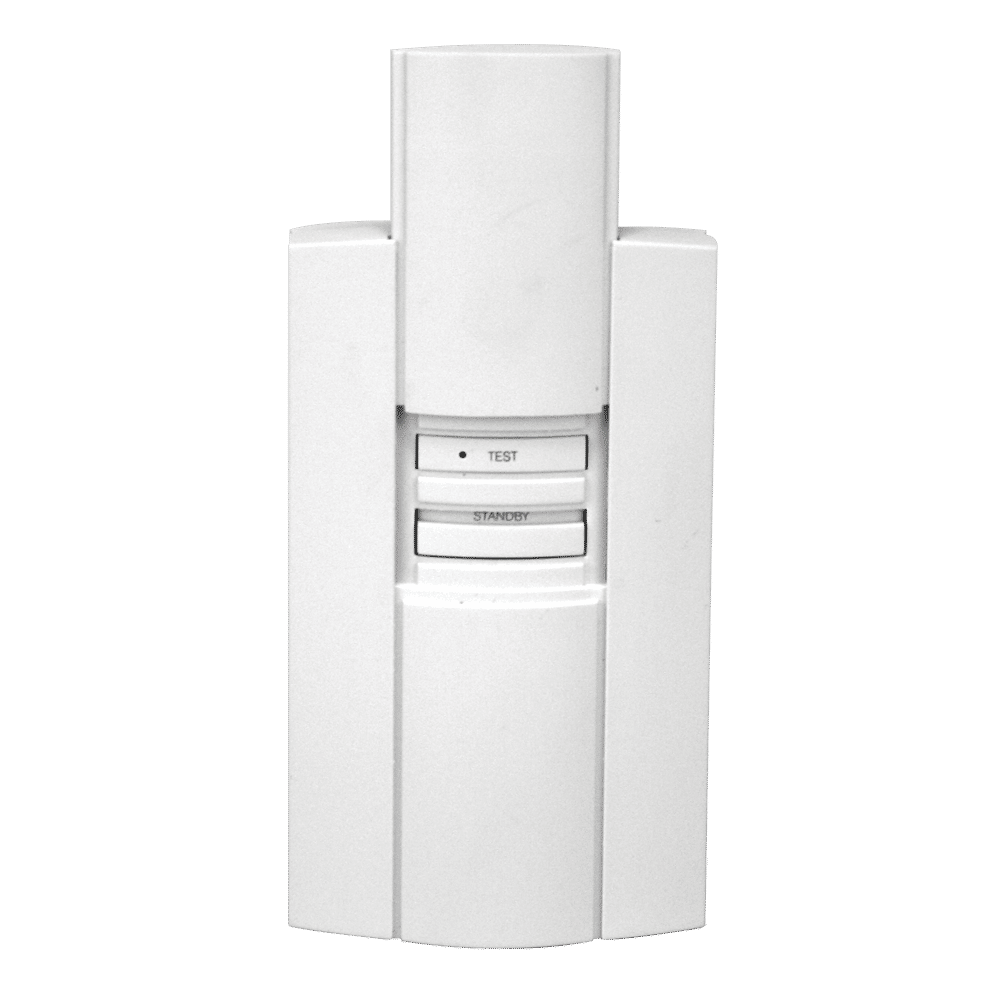

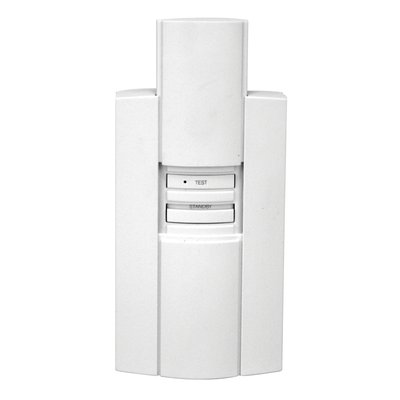

Power Module Dual Voltage with GFCI 15mA
Part Number: CT230-GB
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions (21)
Publications and Manuals (4)
Specifications (11)
Videos (1)
Articles (3)
Similar Items (2)
Create a new Support Request
Common Support Questions
The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.
Need more help? View support options
One thermostat can control multiple heating mats/cables as long as all the heating elements are using less than 15 amps:
TempZone™ will cover aprx. 120 sq. ft. for 120V systems and 240 sq. ft. for 240V systems on one thermostat.
Environ™ will cover aprx. 150 sq. ft. for 120V systems and 300 sq. ft. for 240V systems on one thermostat.
Slab Heat will cover aprx. 90 sq. ft. for 120V systems and 180 sq. ft. for 240V systems on one thermostat.
Need more help? View support options
When the ground fault protection mechanism trips, the TEST light is On (red). To reset the ground fault protection, switch the thermostat to Off and back to On. The TEST light will turn off.
Need more help? View support options
If your thermostat is blank, the first thing to do is to test to see if voltage is present at the rear of the thermostat. Verify that the power module power switches are in the ON position. Test for 12VDC across the 12VDC screw and the GROUND screw at the back of the thermostat. Here is a wiring diagram: https://www.warmlyyours.com/en-US/publications/MASTER-THERMOSTAT-W-POWER-MODULES-WIRING-DIAGRAM-B.pdf
If no power is reaching the thermostat, please test for 12VDC across the 12VDC and GND output at the front of power module base that is supplying power to the thermostat (the faceplate must be installed). If no power is present there, please inspect the circuit breaker in the breaker panel powering the power modules, and verify that the breaker is a non-GFCI type. If it is a GFCI breaker, replace it with a non-GFCI breaker. If there is power entering the thermostat and it is blank, it will need to be replaced. If power is getting to the power module and there is no 12VDC output to thermostat, the power module will need to be replaced.
Need more help? View support options
All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".
Please see this video on how to install a WarmlyYours nSpiration Series thermostat.
Need more help? View support options
No. The Honeywell CT230 must be controlled by a Honeywell Master Thermostat.
Need more help? View support options
The Master Thermostat must operate on 12 VDC and is powered by one of the linked CT230 units.
Need more help? View support options
Up to ten (10) CT230 linked units can be used in a given system.
Need more help? View support options
Three (3) wires; Ground, Drive, and 12 Volt DC.
Need more help? View support options
Two (2) wires; just the ground and the drive wires.
Need more help? View support options
The manufacturer reversed the wiring pattern between the LOAD side and the LINE side on newly minted controllers, verify that your wiring matches the new wiring schematic stamped on the backplate of the new controller.
Need more help? View support options
No. The nJoin power module is not compatible with a Honeywell system.
Need more help? View support options
To reset the ground fault protection, switch the CT230 OFF and back ON, or cycle the circuit breaker off and on. The TEST light will turn off if the ground fault protection is functioning properly. If the TEST light comes back on, contact Warmly Yours at 1-800-875-5285 and speak to a technical support representative to help further troubleshoot your system.
Need more help? View support options
A GFCI/GFEP (Ground Fault Circuit Interrupter / Ground Fault Equipment Protection) works differently than a circuit breaker by specifically detecting a small imbalance in electrical current between the hot and neutral wires, which indicates a potential ground fault (like a person touching a live wire), and instantly shutting off the power to prevent shock, while a circuit breaker only trips when there's a significant overload in current flow on the circuit, like a short circuit or too many appliances plugged in.
Need more help? View support options
The wire distance between the master thermostat and each CT230 unit must not exceed 500 ft. (150 m). 20-AWG wires are recommended.
Need more help? View support options
The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.
Need more help? View support options
The Master Thermostat.
Need more help? View support options
Relays can fail due to excessive current or voltage. When a relay is exposed to too much current, the contacts can burn out. High voltage can also damage the coil. Other reasons include mechanical wear and tear, dust or dirt buildup, and moisture. These factors can cause the relay to malfunction or stop working entirely. Regular maintenance and using the relay within its specified limits can help prevent failures.
Need more help? View support options
GFCI can fail for various reasons, such as wear and tear, moisture, corrosion, power surges, faulty wiring, or improper installation. Some of these causes can be prevented by regular inspection and maintenance, while others may require professional assistance. It is important to note that GFCI devices (ex. thermostat, breakers, outlets) should be tested regularly as these do wear out over time.
Need more help? View support options
No, a circuit breaker will NOT protect against a power surge; a circuit breakers primary function is to protect against excessive current flow (overload), while a surge protector is specifically designed to handle voltage spikes, which are what power surges are considered to be.
Need more help? View support options
Publications and Manuals
Technical Specifications
Diagram for converting TH115-12VDC (CT230) setup to nSpiration Thermostat with nJoin (English)Wiring Diagrams
Master Thermostat with Dual Voltage Power Modules Wiring Diagram (English)Master Thermostat with Dual Voltage Power Modules Wiring Diagram and Instructions (English)
Specifications
Electrical
| Connection | Double pole, 4 wires, line 1 & line 2 |
| Connection Method | Hardwired |
| Maximum Load (Resistive Only) | 1800 W - 120 V, 3600 W - 240 V, 15 A |
| Voltage | 24 V |
Logistics
| Country of Origin (COO) | China |
Identifiers
| Ground Fault Protection (GFCI) | Class B, 15 mA |
| SKU | CT230-GB |
Product Dimensions
| Length | 3″ |
| Weight | 1 lbs |
| Width | 2″ |
