Slab Heating Mat 240V, 3′ x 56′, 168 sq.ft., 14.0A

Slab Heating Mat 240V, 3′ x 56′, 168 sq.ft., 14.0A
Need help? Call our experts at 800-875-5285
Get an Instant Quote
Support Page

Features

  • 10 Year Warranty
  • Our systems are cUlus listed, Gfci protected and RoHs Compliant
  • No pipes, boilers, tubing, tanks, or noisy pumps to install
  • 10-year warranty covers defects in workmanship and materials
  • 20W per square foot operation for energy efficient comfort

Slab Heat Mats Description

Turn that hard-to-heat area into comfortable living space your family will enjoy. WarmlyYours Slab Heating Mats make it easy to add radiant warmth to concrete floors in room additions, basements, and more. The 240 V 3 x 56 ft. slab heating mat features a twin-conductor and is cCSAus approved for safety. These mats operate at 14 A to provide 168 ft² of heating coverage at 20 watts per sq. ft. WarmlyYours backs our slab heating mats with a 10-year warranty to ensure your satisfaction.

Specifications

Electrical

Amps 14 A
Floor Load 3.36 kW
Ohms 17.14 Ω
Thermal Power 3.36 kW
Voltage 240 V
Watts 3360 W
Watts Per Sq. Ft. 20 Watts Per Sq. Ft.

Warranty / Certifications

Approvals cCSAus Listed
Warranty 10 Year Warranty

Performance

BTU Per Hour 11465 Btu

Product Dimensions

Cold Lead Length 20′
Coverage 168 ft²
Heating Element Thickness 1/4″
Length 56′
Size 3′ x 56′
Weight 29.4 lbs
Width 3′

Logistics

Country of Origin (COO) India

Installation

Floor Types Installs in concrete

Identifiers

SKU WSHM-240-03056
UPC (GTIN-12) 881308020934

Cabling Specs

Wire Energy efficient twin-conductor

Customer Questions & Answers

Slab Heat Mats has 59 Questions and Answers.

Don't see the answer you're looking for? Post your question

How do I work with my electrician to install WarmlyYours electric floor heating?

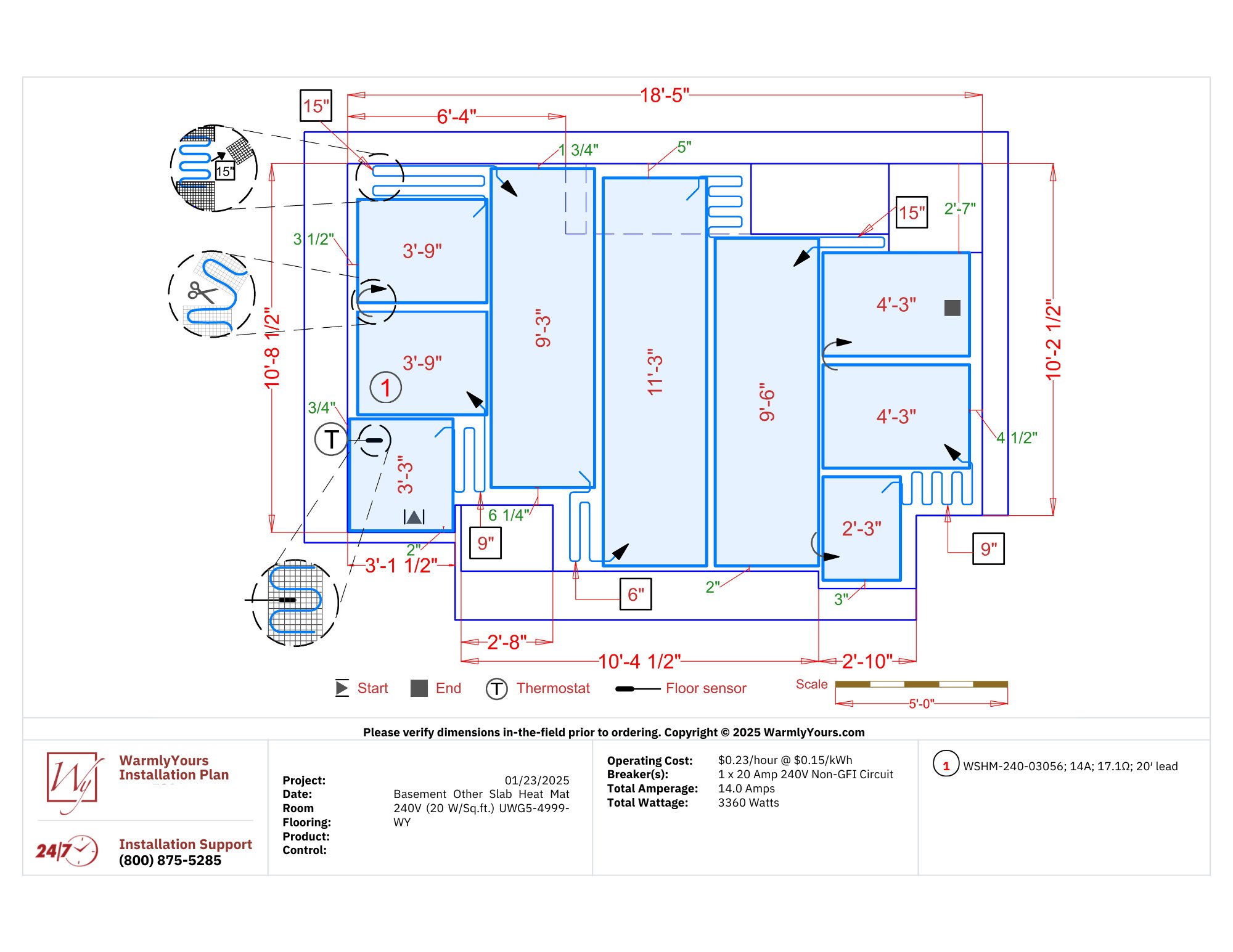

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.
35 people found this helpful.  Did you find this helpful? Yes No

How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.
29 people found this helpful.  Did you find this helpful? Yes No

Is electric floor heating safe and what about EMF?

Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:

Vacuum Cleaner: 300 mG

Microwave: 200 mG

Portable Heater: 100 mG

Dishwasher: 20 mG

Washing Machine: 20 mG

WarmlyYours TempZone™ (Twin): 1.8 mG
26 people found this helpful.  Did you find this helpful? Yes No

What type of flooring can I install along with an electric floor heating system?

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
24 people found this helpful.  Did you find this helpful? Yes No

If I have extra cold lead wire, can I trim off what I don't need for my installation?

Yes. Unlike the heating cable for electric floor heating, the cold lead wires can be trimmed.
18 people found this helpful.  Did you find this helpful? Yes No
