Snow Melt Cable 277V, 8.66A, 200 ft.

Snow Melt Cable 277V, 8.66A, 200 ft.
22 Reviews
Need help? Call our experts at 800-875-5285
How Much Cable Will I Need?
Get an Instant Quote
Support Page

Features

  • High Heat Output: This embeddable electric heating cable provides 12-watts of heat per linear foot (nearly 50-watts per sq. ft.)
  • Embeddable in Concrete, Asphalt, or in Mortar Under Pavers: Installing a cable-based snow melting system within a new driveway, walkway, or patio means you can enjoy snow/ice free outdoor surfaces all year
  • Cost-Effective and Flexible: Snow melting cables are an less expensive (but more time consuming) alternative to snow melting mats and they provide maximum flexibility to cover round driveways, cornered patios, or outdoor stairs
  • Wide Variety of Voltages: We offer snow melting cables in 120, 208, 240, and 277 voltages and in a range of different lengths
  • Installation Support: WarmlyYours offers free SmartPlan™ installation plans, 24/7 phone support, and a 10-year limited warranty

Snow Melt Cables Description

Add the safety and convenience of a snow-melting system to your commercial project. This 277V 200-foot-long snow-melting cable from WarmlyYours generates 12 watts of radiant heat per lineal foot (50 watts per square foot at 3” spacing) to remove snow and ice from concrete, asphalt or paver surfaces.

For use in commercial installations, this twin-conductor cable measures just ¼” (6mm) in diameter and includes 50 feet of cold lead to meet the requirements of any installation.

All WarmlyYours snow-melting cables are CSA certified for outdoor use in the U.S. and Canada.

Specifications

Electrical

Amps 8.66 A
Ohms 31.97 Ω
Voltage 277 V
Watts 2400 W
Watts Per Linear Ft. 12 W
Watts Per Sq. Ft. at 3 Inch Spacing Up to 50
Watts Per Sq. Ft. at 4 Inch Spacing Up to 38.5
Watts Per Sq. Ft. at 5 Inch Spacing Up to 31.5

Warranty / Certifications

Approvals cCSAus Listed
Warranty 10 years

Performance

BTU Per Hour 8189 Btu

Product Dimensions

Cold Lead Length 50′
Coverage at 3 Inch Spacing 50 ft²
Coverage at 4 Inch Spacing 66.7 ft²
Coverage at 5 Inch Spacing 83.3 ft²
Heating Element Thickness 1/4″
Length 200′
Weight 9.8 lbs

Appearance

Color Green

Logistics

Country of Origin (COO) India

Cabling Specs

Ideal Cable Spacing 4″

Identifiers

SKU WHCA-277-0200
UPC (GTIN-12) 881308047061

Installation

Surface Types Asphalt, concrete or in mortar under pavers

Installation Plans

This is a real example of an installation plan that uses this product. If you want to design your own room or have any questions, please contact us.

Flooring
Concrete (new) Subfloor
N/A Voltage
208V Operating Cost
252 cents per hour
Design Your Own Project Get a Free Quote

This Installation Plan Includes:

1 x
Snow Melt Cable 208V, 7.36A, 128 ft.
1 x
Snow Melt Cable 208V, 9.62A, 171 ft.
2 x
Snow Melt Cable 208V, 11.54A, 200 ft.
1 x
Snow Melt Cable 208V, 19.22A, 342 ft.
1 x
Snow Melt Cable 208V, 21.64A, 376.5 ft.
1 x
Sensor Snow Melt Aerial-Mounted
1 x
Large Relay Panel, (6x) 2-Pole
1 x
Snow Melt Plaque (NEC Requirement)
1 x

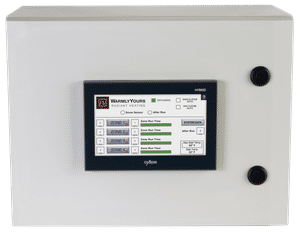

Advanced Snow and Ice Melt Control - 100-277VAC

Customer Questions & Answers

Snow Melt Cables has 43 Questions and Answers.

Don't see the answer you're looking for? Post your question

How quickly do these systems melt the snow?

That depends on a number of variables (like the temperature outside) but generally speaking these snow melting systems are designed to melt 1" - 3" of snow per hour. Anything above 3" per hour is typically considered blizzard conditions.
22 people found this helpful.  Did you find this helpful? Yes No

Is it okay to cut the snow melting cable if it is too long for the application for which it was designed?

Never cut the heating cable. A heating cable will not work if it has been cut. If the heating cable is too long, call WarmlyYours to consult with a technician who will guide you in utilizing the additional length of cable.
17 people found this helpful.  Did you find this helpful? Yes No

How does the electric snow melting system compare to hot water tubing (hydronic) systems?

The material costs are similar. However, electric systems are easier to install, with fewer components and significantly lower maintenance costs. Electric systems will run for a shorter period of time to give the same level of performance but with much higher energy efficiency (typically 95%-98% efficient). Controls and sensors required for the two types of systems are very similar. Electric systems do not usually require slab insulation and do not create the concerns typically associated with hydronic systems. These concerns include, but are not limited to, return temperatures, flue gas venting, waterway shrinkage and property damage caused by leaking pipes or tubes.
14 people found this helpful.  Did you find this helpful? Yes No

May I cross or overlap the WarmlyYours snow melt heating cable?

When installing outdoor WarmlyYours snow melting cables for your driveway, patio, walkway, terrace, stairs, ramp, etc. - NEVER cross, overlap, or allow the heating cables to touch each other. Doing so will quickly cause a circuit failure due to excessive heat build up. Always follow the installation instructions and/or design layout plan to ensure the cable is installed with the correct spacing required for proper operation.
13 people found this helpful.  Did you find this helpful? Yes No

Does the factory splice need to be completely embedded during installation?

Yes. The manufacturer's splice that connects the heating element to the cold lead should be entirely embedded in a noncombustible material (like asphalt, concrete, or mortar) within the outdoor surface that is being heated.
12 people found this helpful.  Did you find this helpful? Yes No
View all 43 Questions and Answers

Customer Reviews

Snow Melt Cables achieved an average rating of 4.9 stars with 22 reviews by our customers.

Have you used this product before? Leave a review

Amazing service and product!

Joey G., Ottawa, ON on 11/11/2024

Jennifer is a great sales rep and love the product.Service is fantastic.

Best service ever!

Marc C., Salt Lake City, UT on 10/19/2023

Mary was fantastic at listening and helping me find the best solution to melt ice and snow on my exterior stairs. Mary was kind and patient as this had many challenges and Mary worked through them all like a champ. We love our new system and love not shoveling.

Heating. Wire for driveway.

Vincent S., Wasaga Beach, ON on 06/07/2023

Easy to install, mostly because I have pavers on the driveway Your wiring looks very durable. My only concern is the exsesiers are very expensive. I had to look elsewhere for snow detectors for the unit. Otherwise I think your products are great.

Fantastic, knowledgeable, customer service

Jay R., Damascus, MD on 06/03/2023

Always a great experience with WarmlyYours. Efficient effective technology helps us with melting walkways and driveways as well as warming my feet in the bathroom etc.

Must have this if you live in a snowy region

Anonymous, Colorado Springs, CO on 01/03/2023

Works great! No more salt or shoveling!

No ice in front of the garage doors for the first time in years!

Anonymous, Leawood, KS on 05/06/2022

Our snow melting system was installed this fall and for the first time in years we did not have ice in front of the garage doors for weeks in the winter. The WarmlyYours staff were great to work with and answered our many questions with patience and knowledge.

Learning Curve

Scott R., Omaha, NE on 02/01/2022

There is definitely a learning curve but after that it was great to see the finished product working. Customer was extremely happy.

Your online and telephone support system is the greatest!

Bonnie P., Sterling, AK on 10/17/2021

We just finished laying in the wire and poured our cement, just a day before it started snowing-so we are curing the cement as I type. The men are now hooking up the electrical inside portions. The instructions have been so easy to follow step by step. I wanted to let you know it was so easy, I decided to do the one side of my garage with both systems to have a longer driveway of warmth/snow melt...because it was so cost effective that our family man-power did the labor. I plan on contacting you next Spring after the thaw to order up more wire, etc to do the smaller 14 foot section, which will be turned into a bedroom with a big front window I hope to enjoy looking out during the winter, instead of looking at by past 6 foot snow falling off my roof and building a wall I can't see through. I will send the end result after the electrical is finished plus a photo. :):)

Will have to wait and see!

Cwhr R., Morrison, CO on 06/18/2021

Only the wire is installed in the new walk. I will not be able to give a full review till next winter.

Just as advertised!

Cory W., Sidney, MT on 02/15/2021

We have only had the chance to use it during the last storm~not complaining about that at all. The heated sidewalk worked just as it had been represented. Melted the snow enough to make it easy to remove & when it froze later, turning the heat on for a few hours took care of it. Very happy with this purchase.
