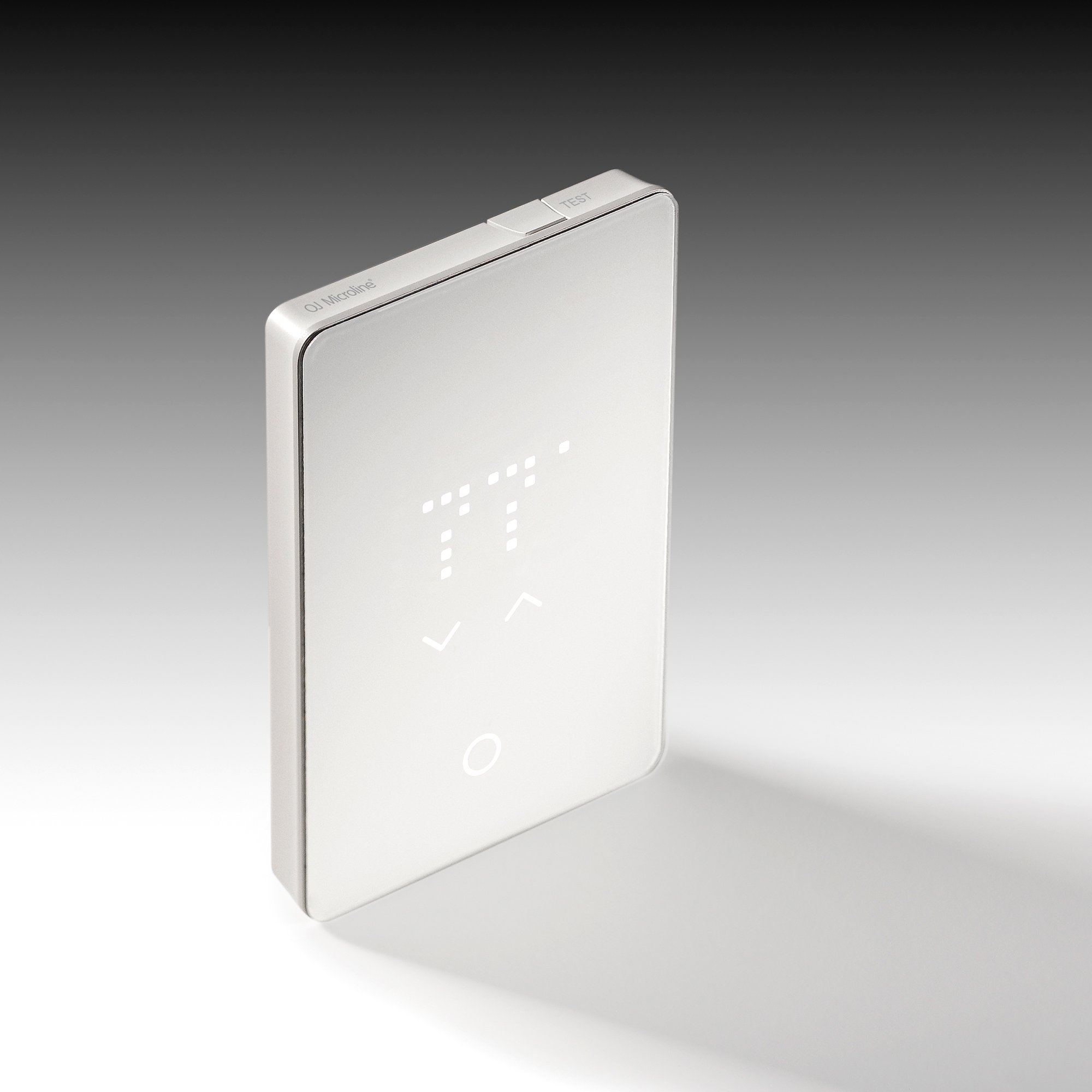

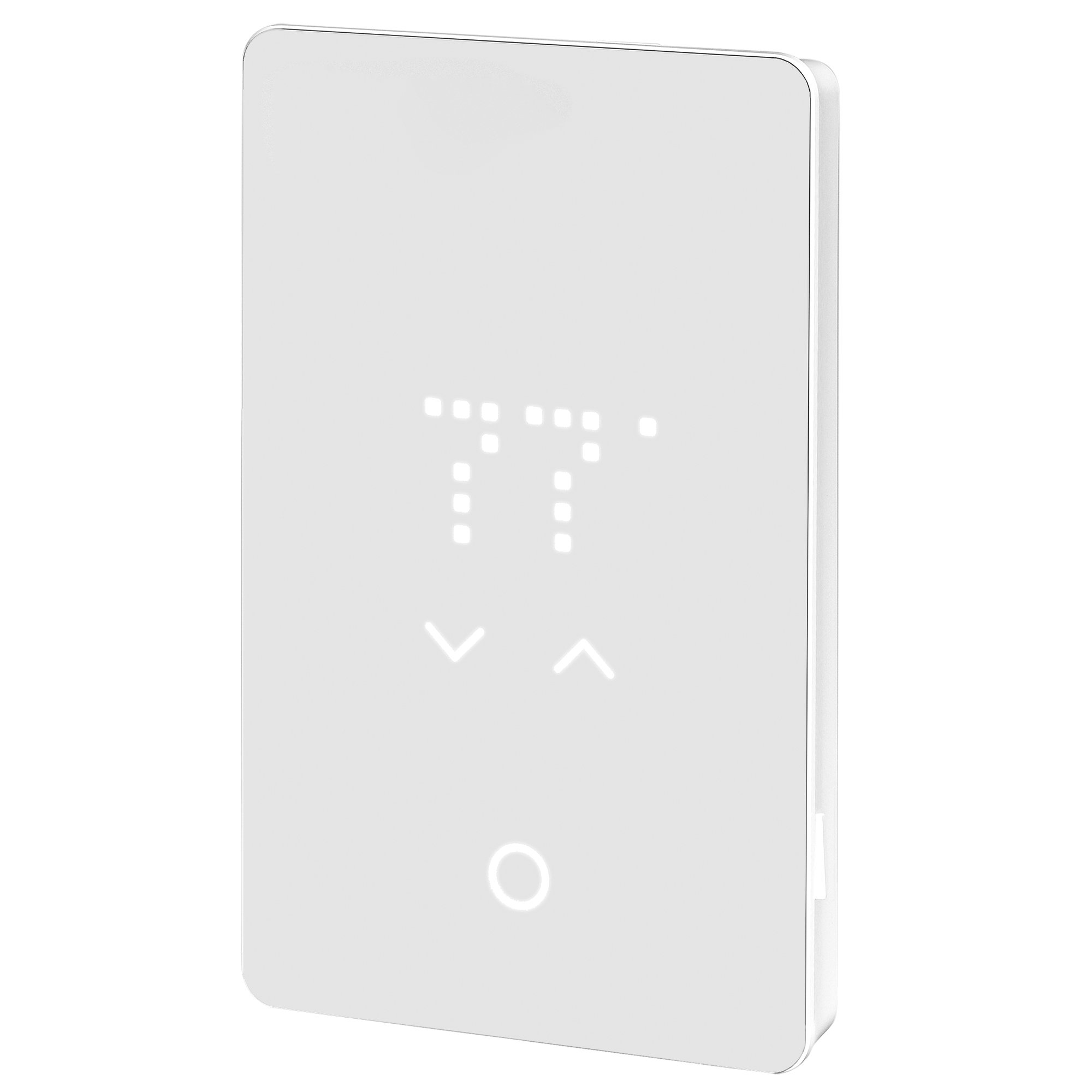

nTrust 2.0 Touch Nonprogrammable Thermostat
Features
-
Sleek, Modern Design: Features an LED display and capacitive touch interface for intuitive temperature adjustments
-
User-Friendly Operation: No programming required—simply set your desired temperature for consistent warmth and comfort
-
Versatile Compatibility: Compatible with both 120V and 240V electric floor heating systems and radiant panel heaters
-
Safety Assured: cULus listed with a built-in GFCI for peace of mind
-
Included Floor Sensor: Comes with a 10k ohm floor sensor to monitor and maintain optimal floor temperatures
nTrust 2.0 Touch Nonprogrammable Thermostat Description
Enjoy the comfort of radiant heating with effortless control using the newly updated nTrust 2.0 Nonprogrammable Thermostat. Designed for ease and dependability, this thermostat features an updated sleek, minimalist design with a new LED display and capacitive touch controls, making temperature adjustments for your electric floor heating system (or radiant panel heater) simple and intuitive.

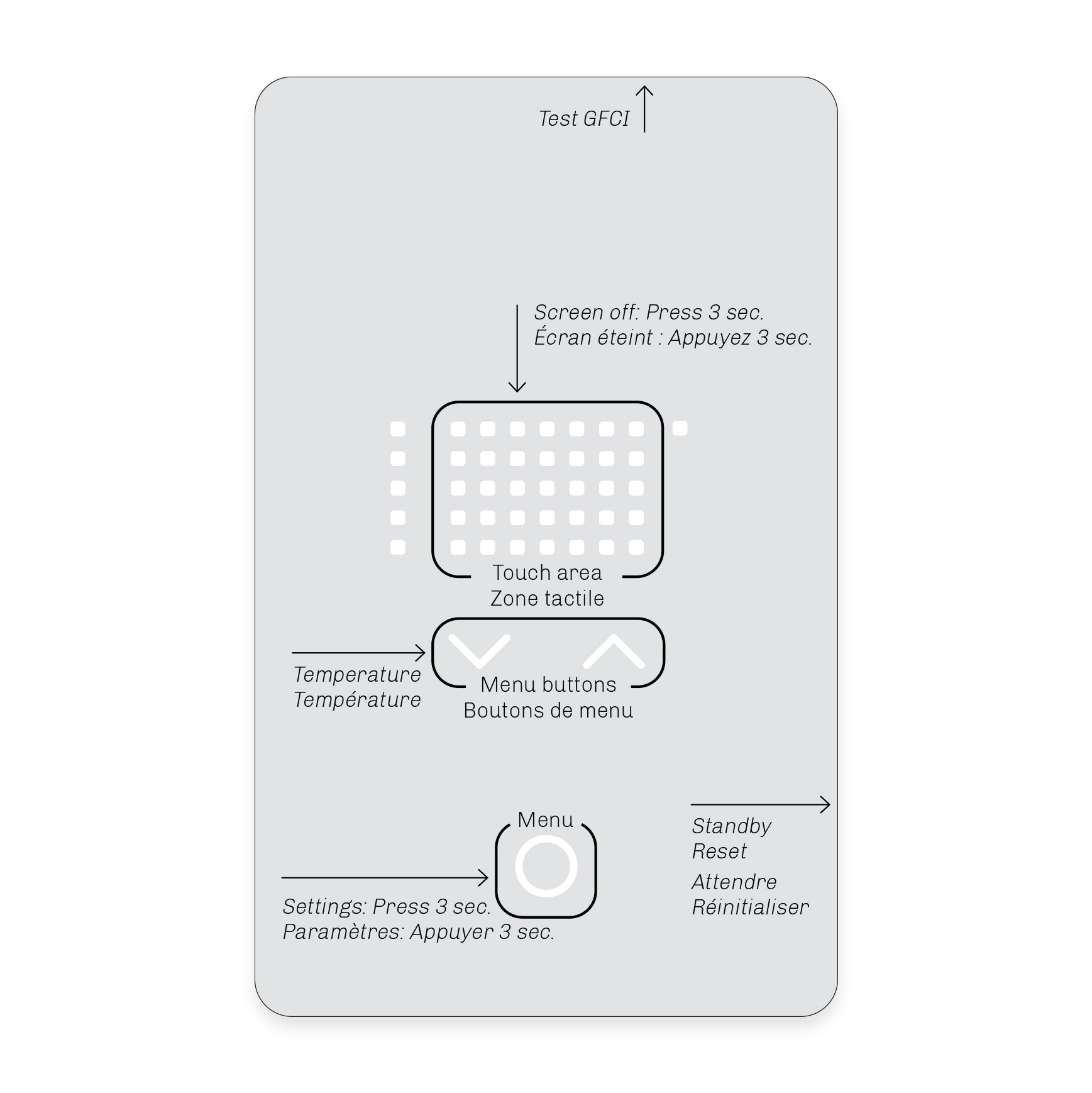

The LED display is brightest when in active use and it will dim or turn off when not in active use. There is also an indicator light in the upper righthand section of the temperature display that will turn orange when the heating cycle is active.
The nTrust 2.0 eliminates the need for programming—just set your desired temperature and enjoy consistent warmth throughout the day. Perfect for high-traffic areas and rooms, its reliable functionality ensures your space stays comfortable without constant adjustments. Additionally, this thermostat can be used in “sensorless mode”, where it simply cycles the power to the system on and off instead of relying on room or floor sensors, which is useful in situations where sensor installation is impractical or when a straightforward heating regulation is sufficient.
The thermostat is designed for quick and easy installation, taking just minutes if the necessary wiring is already in place. Wiring the unit takes about a minute, followed by a quick setup process guided by a user-friendly startup wizard that completes in five simple steps. Once installed, this straightforward thermostat operates seamlessly with no additional support required.
The dual-voltage (120V/240V) nTrust 2.0 thermostat comes with integrated self-testing GFCI which ensures safety.
Also includes a 10k ohm floor sensor.
Features:
- LED Display with Capacitive Touch: Modern, easy-to-use design for precise temperature control.
- Simple, Intuitive Operation: Set your desired temperature and enjoy consistent comfort.
- Dual Voltage Compatibility: Works with both 120V and 240V systems.
- Safety Features: Includes built-in GFCI and cULus certification.
- Included Floor Sensor: This thermostat comes with a complimentary 10k ohm floor sensor.
- Versatile Heating: Compatible with both electric floor heating systems and hardwired radiant panels.
- Warranty Info: Backed by a 3-year limited warranty.
Specifications
Warranty / Certifications
Electrical
Battery | 5 year battery backup of clock and calendar |
Connection | 4 wires, double pole |
Connection Method | Hardwired |
Ground Fault Protection | GFCI, Class A, 5 mA |
Maximum Current | 15 A |
Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
Supply | 120 VAC, 208 VAC, 240 VAC (50/60Hz) |
Appearance
Color | White Acrylic |
Display | LED Light Through |
Logistics
Country of Origin (COO) | Malaysia |
Product Dimensions
Depth | 1.73″ |
Installed Depth | 0.46″ |
Length | 4.98″ |
Weight | 0.4 lbs |
Width | 3.09″ |
Thermostat
Floor Sensor Compatibility | 10k ohms or 12k ohms |
Includes Floor Sensor | 10k ohms, 15′ lead |
Maximum Ambient Temperature Setting | 77 °F |
Maximum Floor Temperature Setting | 104 °F |
Minimum Ambient Temperature Setting | 32 °F |
Minimum Floor Temperature Setting | 41 °F |
Identifiers
SKU | UTN5-4999 |
UPC (GTIN-12) | 881308080426 |
