Power Connection Kit (with End Seal Kit JSR12)
Ice Shield: Self-Regulating Roof and Gutter Deicing Systems Description

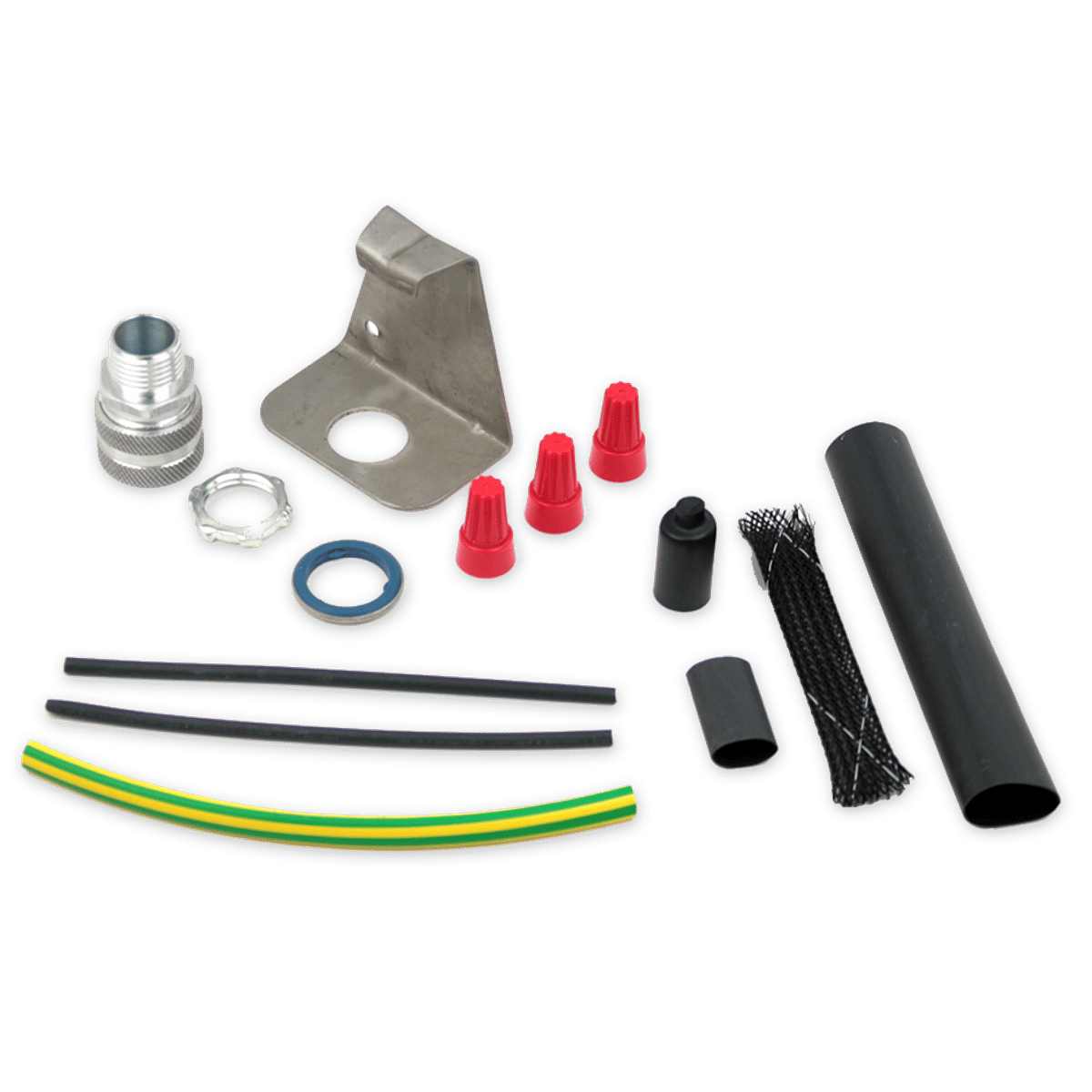

The WarmlyYours SR-PWR-KIT Power Connection Kit includes materials needed to complete a hardwired installation of our self-regulating heating cable systems. The kit is cULus Listed and is suitable for use with our self-regulating Ice Shield Roof and Gutter Deicing Cables or our PRO-Tect Pipe Freeze Protection Cables. In addition to providing the necessary components for the connecting the beginning section of the cable to an appropriate power source, this kit also includes an end seal termination kit (part JSR12).
A separate SR-PWR-KIT Power Connection Kit is required for each independent section of self-regulating heating cable involved in your project.
Specifications
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Length | 9ā³ |
| Weight | 0.2 lbs |
| Width | 7ā³ |
Identifiers
| SKU | SR-PWR-KIT |
| UPC (GTIN-12) | 881308056070 |
Accessories and Spare Parts
Feel free to chat us if you have any questions about these items.
Documents & Manuals
Customer Questions & Answers
Ice Shield: Self-Regulating Roof and Gutter Deicing Systems has 23 Questions and Answers.
Can the heating element be cut to length or shortened?
Our self-regulating heating product is designed to be cut to length at the jobsite by an installer where it can then be end-capped with accessories (sold separately).
However, our constant wattage kits contain heating elements that cannot be shortened or altered in any way.
Do radiant heating products have polarity?
Why a GFEP (GEFP, RCCB, or heat trace circuit breaker) and not a GFCI breaker for WarmlyYours outdoor deicing and snow melting systems?
This National Electric Code (NEC) required protection for fixed outdoor deicing and snow-melting equipment may be accomplished by using circuit breakers equipped with ground-fault equipment protection (GFEP) of 30 mA. It is important to understand that this required equipment protection is not the same as a 5 mA GFCI used for personal protection.
Can the cable be left on in warm weather or all year long?
How do I estimate the roof and gutter deicing cable length needed?
Ā Cable length needed depends on the sizes and areas of the roof that need to be deiced (roof with gutter, downspouts, valleys, and/or dormers). Our best recommendation is for you to give us a call (1-800-875-5285) and we can help you identify what measurements will need to be taken. Alternatively, you can
measure the dimensions of the aforementioned areas and refer to the installation manual to get an idea of how much cable you'll need.Ā
View all 23 Questions and Answers
Customer Reviews
Ice Shield: Self-Regulating Roof and Gutter Deicing Systems achieved an average rating of 4.5 stars with 2 reviews by our customers.
So glad I went with WarmlyYours
William M., Three Lakes, WI on 01/09/2024
I was slow to decide on a company to help me with my metal roof deicing project. I had a budget I needed to stay under. I wanted to do the work myself including the Electrical (my Dad is an electrician retired but would help). I decided on WarmlyYours because they had the best help video's, and staff to help plan and install my project. I didn't think I would get it up and running this year because of my late start. A slow start to winter let me get one leg of a two leg plan done up and running. Now we finally have snow and my one leg works great. This spring laying out the other leg will be easy (and warmer) this spring.
Excellent support, great product
David T., Woodland Hills, UT on 11/20/2022
Everything arrived well packaged and well documented. It was easy to connect and put terminators on the self regulating wire and the roof clamps were nicely engineered. I have already used the system several times and everything works great. Unfortunately the adhesives failed completely, even though they were applied with an air temperature of 65 and a roof temperature of 85 to a clean, new roof. I will probably have to use tar to reattach them in the spring.
