Ember Glass Radiant Panel Heater - White - 800W - 47ʺ x 24ʺ - Dual Connection
Features
-
Wall mounted: this 47” x 24” infrared heating panel can be installed vertically or horizontally on your wall
-
High heat output: this panel heater delivers an impressive heat output of 2,728 BTUs per hour
-
Energy efficient: it only costs approximately 8 cents per hour on average to run this electric wall heater
-
Dual connection: can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
-
Covered by a 5-year limited warranty
Ember Glass Radiant Panels Description

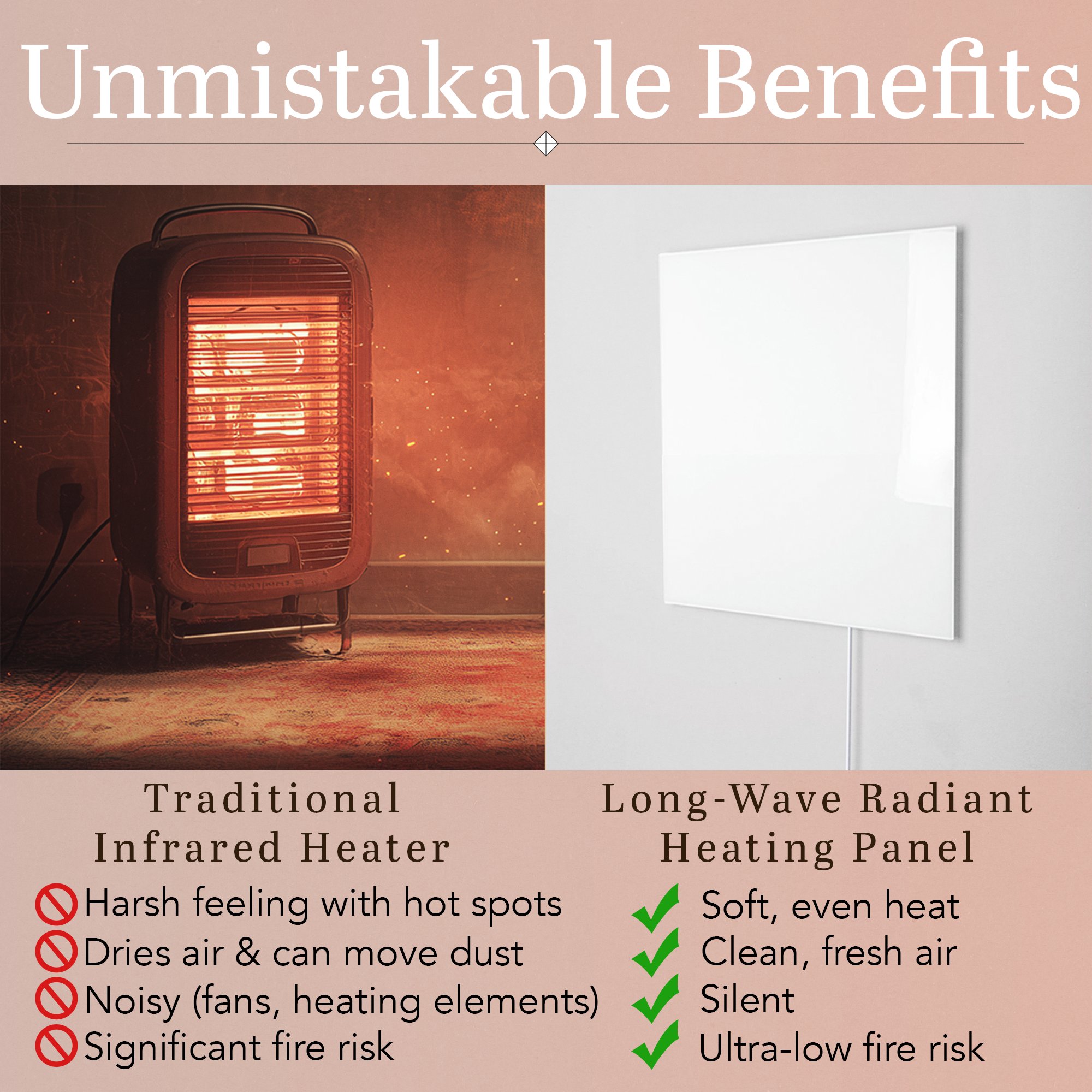

Ember Glass radiant panels offer clean heat without any smell, sound or allergens. At approximately 3.9 by 2 feet in size, this sleek, white panel can be mounted vertically or horizontally to a wall in any room of your home to provide primary or supplementary heat. When mounted vertically in a dry area of your bathroom, towel bars can be added to create an additional convenient function. This delivers soothing, even warmth to your room from above. All of this heat is delivered in the most energy efficient way possible. Ember radiant panels have one of the highest possible efficiency rates and consume the least amount of energy possible*.
These panels are also dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
Note: Towel bars must be purchased separately.
* Infrapower Manufacturing Ltd.
Features:
- Wall Mounted: This 47” x 24” radiant panel can be installed vertically or horizontally on your wall
- Dual Connection: Can be hardwired to a thermostat or plug-in a standard outlet (120 VAC)
- High Heat Output: This infrared heating panel puts out 2,728 BTUs per hour
- Low Operating Cost: It only costs roughly $0.10 per hour to run this model (based on a national average electrical cost of 12 cents per kWh)
- Safe and Stylish: This radiant panel is not only more aesthetically pleasing than a propane space heater but it’s also safer
- 5-year Warranty: This product is covered by a 5-year limited warranty
Specifications
Electrical
| Amps | 6.7 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 6′ |
| Ohms | 17.91 Ω |
| On/Off Switch | No |
| Plug-Type | NEMA 5-15 (Type B) |
| Thermal Power | 0.8 kW |
| Voltage | 120 V |
| Watts | 800 W |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| RoHS Compliance | 2002/95/EC (RoHS 1) |
| Warranty | 5 years |
Performance
| BTU Per Hour | 2730 Btu |
| Heating Coverage | 114 ft² |
| Surface Safety Limit | 248 °F |
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Depth | 0.98″ |
| Length | 47.2″ |
| Weight | 40.7 lbs |
| Width | 23.6″ |
Appearance
| Finish | Glass White |
| Model | Ember Glass White - 47″ x 24″ |
| Size | 47″ x 24″ - 800W |
Installation
| Mounting Locations | Wall |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-GLS-WHT-0800 |
| UPC (GTIN-12) | 881308039189 |
Controls
A great control is the secret to any great heating system.
Accessories and Spare Parts
Feel free to chat us if you have any questions about these items.
Documents & Manuals
Installation
Warranties
Sell Sheets
Catalogs
Customer Questions & Answers
Ember Glass Radiant Panels has 26 Questions and Answers.
How hot is the infrared heating system when in use?
The heater is very hot during use (up to 120° C or 248° F).
How far from the radiant panel will the heat substantially radiate and where should it be aimed?
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
Can an Ember radiant panel be mounted on the ceiling?
Only the Ember Flex radiant panels can be mounted from the ceiling and they come with all of the necessary hardware to accomplish this.
None of the radiant panel heaters from the Ember Glass or Ember Mirror lines can be mounted from the ceiling.
How do you keep a sunroom warm in the winter?
Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.
How quickly does the radiant panel heat up?
The startup heating time for this infrared heating system is approximately 5 to 10 minutes. However, your room will not feel warmer immediately because the cold objects in the room (furniture, walls, ceilings, floors, etc.) need to warm up first. Once these surfaces are heated via infrared heating, the warmth will spread throughout the room.
View all 26 Questions and Answers
Customer Reviews
Ember Glass Radiant Panels achieved an average rating of 4.7 stars with 13 reviews by our customers.
Perfect For the space
Paul N., Pleasant Prairie, WI on 02/02/2023
Customer needed some extra warmth in the workout room above garage. They had forced air but it wasn’t sufficient for cold Wisconsin winters. The large glass panel looked great in the space and made the 20x40 space warm and comfortable.
Great Product
Mark V., Oneonta, NY on 02/03/2022
I love the heat panel that doubles as a mirror in our bathroom. So nice to get out of the shower and feel the radiant heat.
Great product and courteous customer service
Viola M., Barnstable, MA on 12/09/2021
I appreciated Lynn from customer service reaching out to us before shipping the radiant panel to see if we had any questions and offer help. The electrician who hardwired the unit with a countdown timer said the installation went smoothly. The panel looks great and works as described. It heats up pretty quickly, but it takes about 30-45min to feel the effect in the room. The panel matches the room size and is used as supplemental heat to increase the temperature in the room for short periods.
Nice panel, easy ceiling install
Jeremy L., Erie, CO on 11/17/2021
Installed and using the Ember Flex Radiant Panel Heater- White - 500W - 35” x 24”. Panel install was easy but programming the Leviton Digital Timer Switch is a challenge. For us it's critical to have the panel on a timer of some sort because it not temperature controlled (either on or off) and consumes 500w of electricity when on or about $2/day.
Customer Service (Account Manager, Jennifer Melus) was great.
Jay S., Seattle, WA on 07/15/2021
Customer Service (Account Manager, Jennifer Melus) was great. I had a problem with a defective panel that was burning off the white paint, emitting VOC. Jennifer was very helpful in replacing the defective panel. Although there were a few glitches during the process, their over all customer service was excellent! This is a huge reflection on the company, as they not only stand by their product but their Customer Service was very good!
Review
Jay S., Seattle, WA on 07/15/2021
Customer Service (Account Manager, Jennifer Melus) was great. I had a problem with a defective panel that was burning off the white paint, emitting VOC. Jennifer was very helpful in replacing the defective panel. Although there were a few glitches during the process, their over all customer service was excellent! This is a huge reflection on the company, as they not only stand by their product but their Customer Service was very good!
Shipping issues
Shawn H., London, ON on 03/16/2021
I ordered this product and quickly received shipment of not one but 2 heated panels both were white glass and the plug in versions problem was I ordered ONE mirror hardwired version, It took many calls texts and emails to get sorted out and after 4 weeks I finally got another shipment This time it was a mirror but it WAS NOT a hardwired version, After consulting my electrician and WarmlyYours tech support I decided to keep it and cut off the plug to wire it directly, Throughout this somewhat frustrating transaction the salesman Troy Barton was extremly helpful prompt and pleasant to deal with. The problems with wrong product shipment were elsewhere in the supply chain. Mirror is not installed yet but seems very well made.
Response from WarmlyYours:
Shawn, we apologize for the original shipment issue. Our current version of Ember panels are dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
No on/off switch
Deborah S., Philadelphia, PA on 02/15/2021
Unit works fine but I would have appreciated an on/off switch and some indicator that the unit is on. I feel this is a poor design.
Response from WarmlyYours:
Deborah, thank you for your review. I wanted you to know that our radiant panels are best paired with controls for proper operation and visual indications. You can add that to your setup at anytime. We have two plug-in models: wifi-enabled and countdown timer. https://www.warmlyyours.com/en-US/products/code/GK17-30090-0002 https://www.warmlyyours.com/en-US/products/code/GK16-30090-0005. I hope that helps! Stay warm. - Julia Billen (Owner)
Great product for heating rooms
Ian C., Richmond Hill, ON on 02/15/2021
I purchased an 800W panel for heating my basement office, and so far, it has worked as expected. It does take a few minutes to start feeling some warmth, but after that, it is very comfortable. As well, the panel doesn't need to stay on all the time, as the residual heat seems to keep the room warm well after the unit has been shut off. It is nearly silent (you can hear a few quiet "clicks" when the panel turns on/off), and there is no odour at all when in operation. The panel is hot to the touch, but it won't burn your skin if you do accidentally touch it (which was one of my concerns before buying). The reason for only providing 4 stars, rather than 5 stars is the installation process. You have to be extremely accurate with your template, as the mounting holes do not leave much room for error. If they could improve the flexibility of the mount, that would make it perfect.
Aesthetic solution
Andrey P., San Jose, CA on 02/15/2021
Looks nice and stylish. Also pretty effective at keeping 700sq.ft room warm at night.
