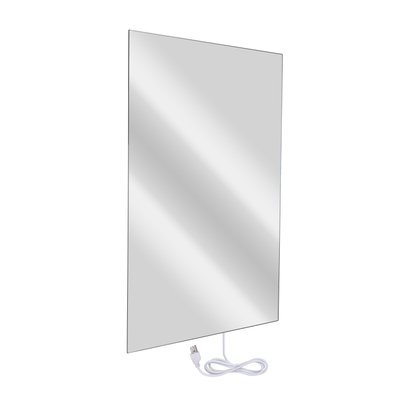

Ember Mirror Radiant Panel Heater - 800W - 47" x 24ʺ - Dual Connection


Part Number: IP-EM-GLS-MIR-0800
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (6)

publication
Publications and Manuals (4)

specifications
Specifications (29)

Videos (4)

Articles (4)

Related Items (7)

Similar Items (1)

Create a new Support Request

Shop Now

Common Support Questions


Radiant panels using infrared heating can get very hot on the surface (up to 248° F). For safety, it is recommended that your radiant panel be mounted out of the reach of children.

Need more help? View support options

There is no on/off button. If you're using your dual connection Ember radiant panel in the plug-in configuration, it can be unplugged when not in use or paired with compatible plug-in control devices like a timer. If you've elected to convert your dual connection radiant panel to a hardwired connection, the radiant panel should be wired to a hardwired control option like a switch, a hardwired timer, or a hardwired thermostat.

Need more help? View support options

We do not have a Radiant Panels Running Cost Calculator.  However, this can be determined easily by taking the panel’s wattage, dividing it by 1000, and then multiplying the result by the local kW/hr cost – then take this hourly cost and multiple by 730 hours to get a monthly estimate.

Need more help? View support options

No, the Ember radiant panels are not designed to be controlled with a dimmer.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Amps 6.67 A
Connection Method Plug-in or Hardwired
Cord Length 6′
Ohms 18 Ω
On/Off Switch No
Plug-Type NEMA 5-15 (Type B)
Thermal Power 0.8 kW
Voltage 120 V
Watts 800 W

Warranty / Certifications

Approvals cTUVus certified
Ingress Protection (IPxx) Rating IP65
RoHS Compliance 2002/95/EC (RoHS 1)
Warranty 5 years

Performance

Average Surface Temperature 194 °F
BTU Per Hour 2730 Btu
Heating Coverage 114 ft²
Surface Safety Limit 248 °F

Logistics

Country of Origin (COO) China

Product Dimensions

Depth 0.98″
Length 47.2″
Weight 40.7 lbs
Width 23.6″

Appearance

Finish Glass Mirror
Model Ember Mirror - 47″ x 24″
Size 47″ x 24″ - 800W

Installation

Mounting Locations Wall
Mounting Orientation Horizontal or Vertical

Identifiers

SKU IP-EM-GLS-MIR-0800
UPC (GTIN-12) 881308073961
