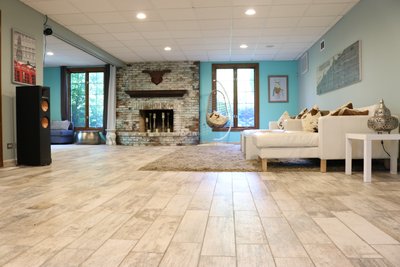

Electric floor heating is an effective and energy efficient way to provide heat for many of the most used rooms in a home while keeping energy costs low. Electric floor heating systems are commonly installed in bathrooms, kitchens, and bedrooms but can also be used to provide extra warmth for rooms like the basement that are hard to heat with traditional air heating systems. Electric floor heating is easy to install and there are floor heating systems for every floor type including tile, vinyl, nailed hardwood, and floating laminate, just to name a few.

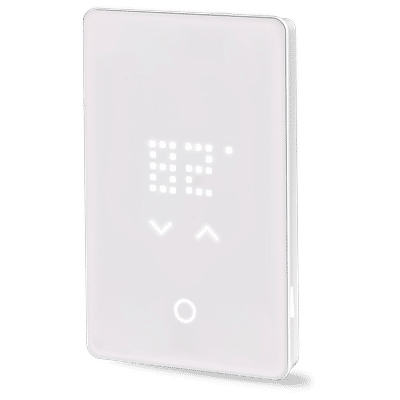

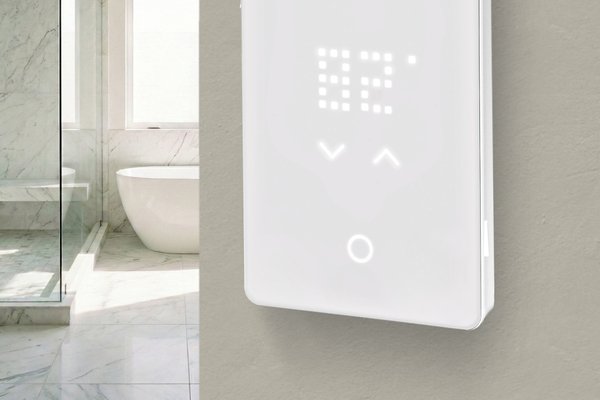

A great heating system starts with the right thermostat. WarmlyYours offers two sleek options: WiFi-enabled for remote control and non-programmable for simple, manual adjustments. Both deliver the same modern design and easy operation, ensuring you get the most from your floor heating system.

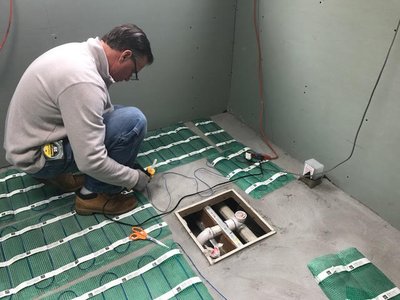

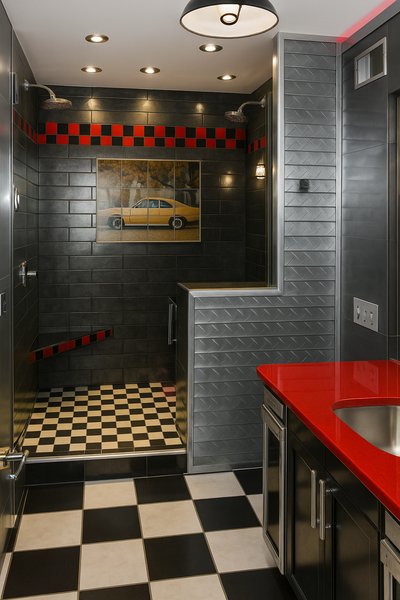

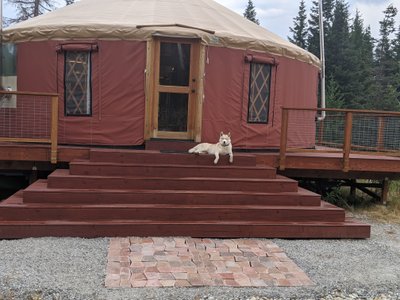

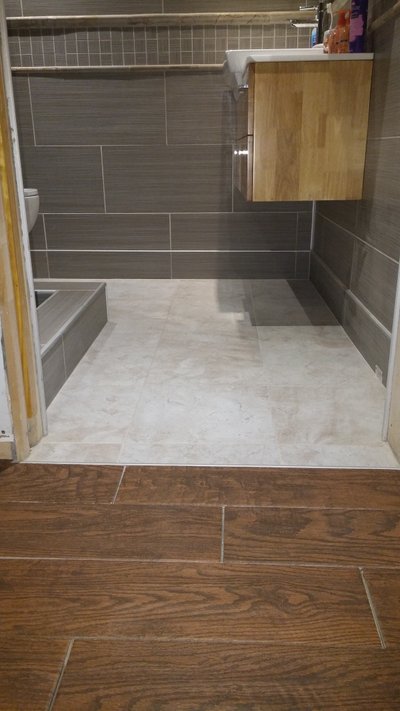

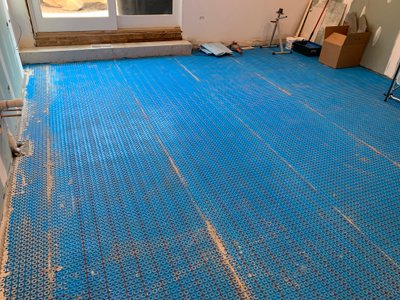

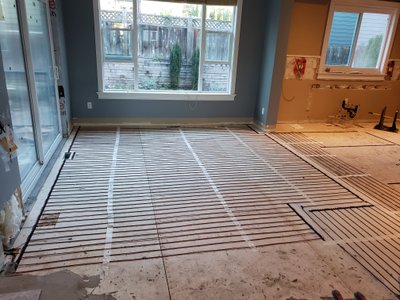

Shop ControlsCheck out these customer-submitted projects to see real world examples of how a floor heating system is installed in a variety of different rooms.
Yes, electric radiant floor heating is a very efficient way to heat rooms in your home. Electric floor heating systems use electrical resistance to generate heat that is then radiated to the solid objects in a room. This means much less wasted energy than in other forms of heating like forced air, because the solid objects heated by floor heating systems will retain their energy longer than hot air will.
Also, due to the nature of electric floor heating, most users report being comfortable at a lower air temperature setting than if they used a forced air system exclusively, which can translate into significant energy savings. And when you pair floor heating with radiant heat panels, you can add more comfort without relying on furnaces and heat pump systems.
However, while electric radiant floor heating is very cost effective, it still uses electricity. The operating cost for your floor heating system will depend on a few things like the size of your system, the temperature you're trying to achieve, and the cost of electricity in your area.
Learn more about the cost of an electric floor heating system:
The type of flooring you choose for your electric radiant floor heating system plays a crucial role in determining the best heating solution for your project. Every flooring material has unique construction methods and thermal properties, which impact the type of floor heating system our team of engineers will recommend in your free, custom SmartPlan.
For example, tile floors require electric floor heating embedded in the same thinset or self-leveling cement that adheres the tile to the subfloor. In contrast, floating wood floors need adhesive-free electric floor heating systems designed specifically for that application.
With our expansive product portfolio and decades of experience, we can identify the ideal floor heating solution for your needs. Did you know that, on average, about 88% of WarmlyYours electric floor heating projects involve tile floors?
In recent years, two of the fastest-growing flooring types for pairing with electric radiant heating have been vinyl (specifically Luxury Vinyl Tile) and wood (particularly nailed hardwood).

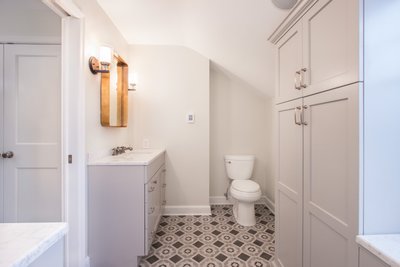

Bathrooms and kitchens remain the most popular spaces for electric radiant floor heating. In a typical year, bathrooms alone account for over half of all floor heating projects.

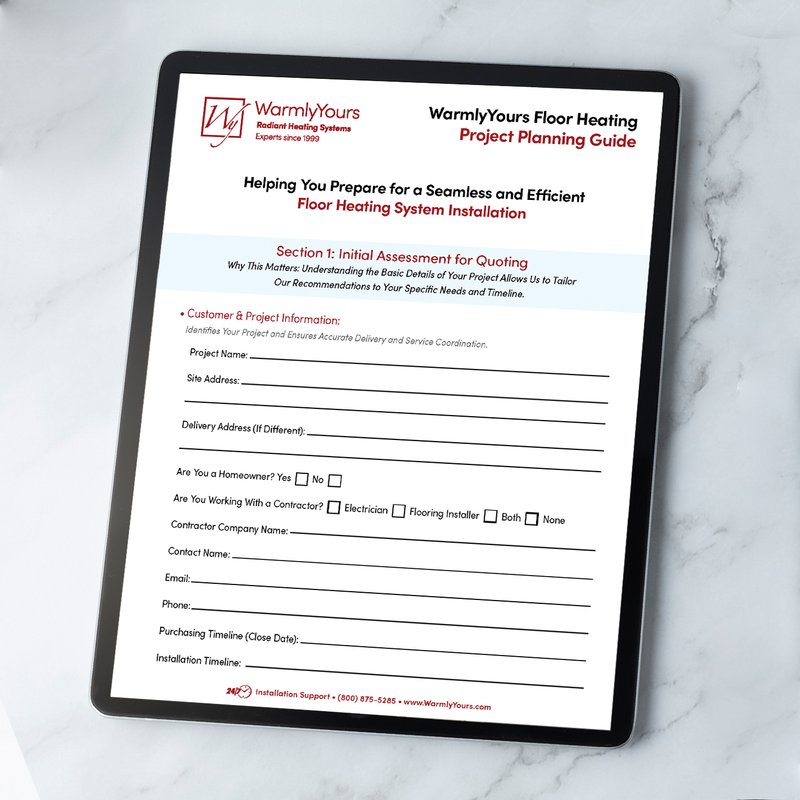

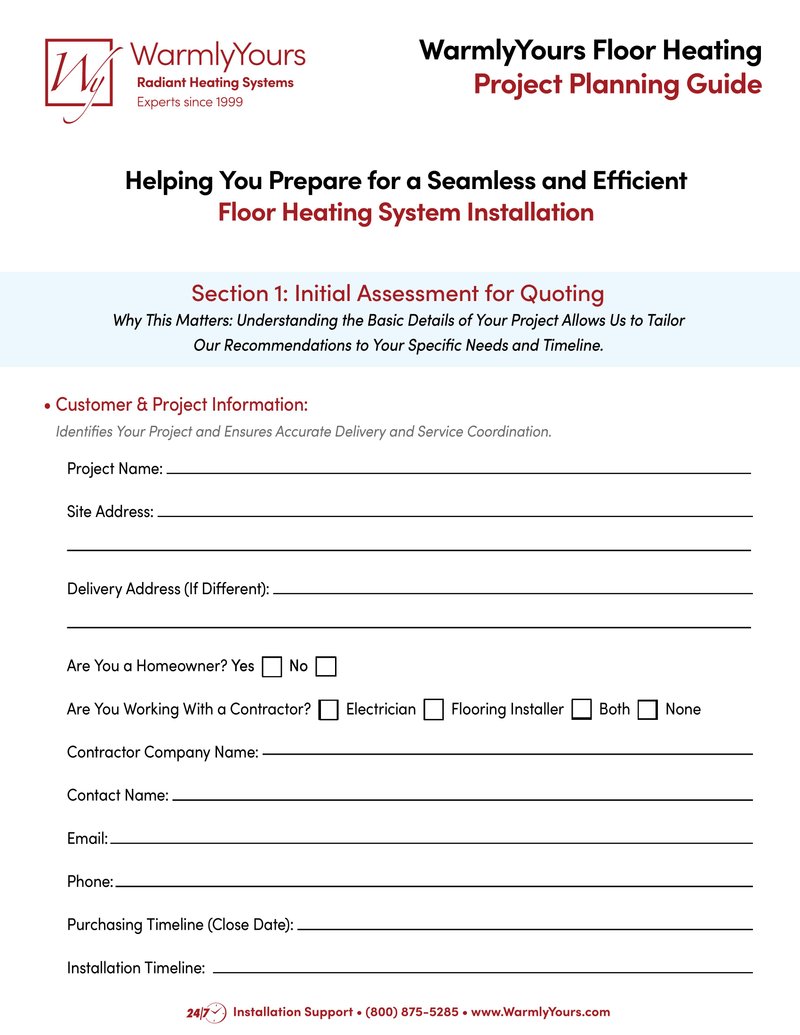

Provide WarmlyYours with a sketch of the bathroom that includes dimensions and other relevant information and you’ll receive a free SmartPlan within one business day that includes an installation plan, an electrical plan, and an itemized quote.

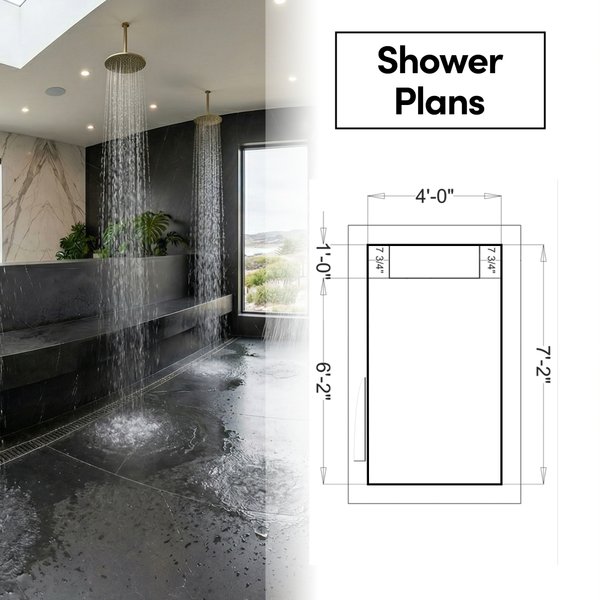

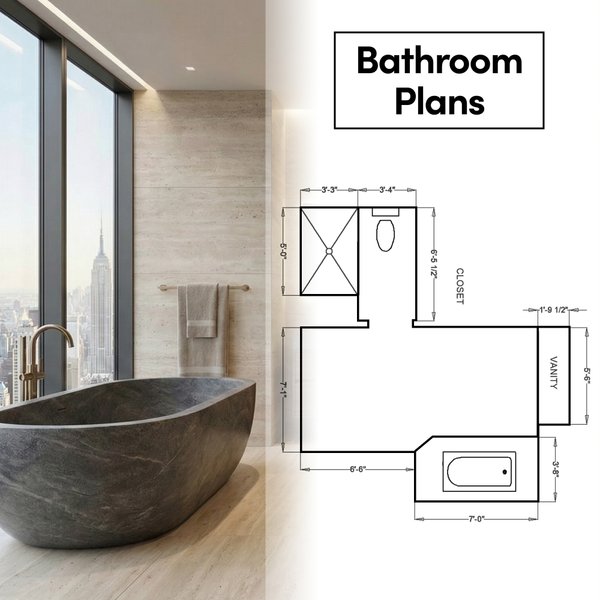

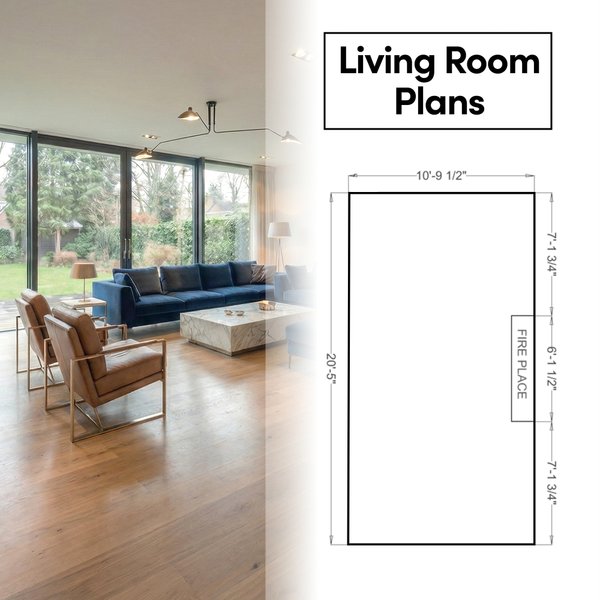

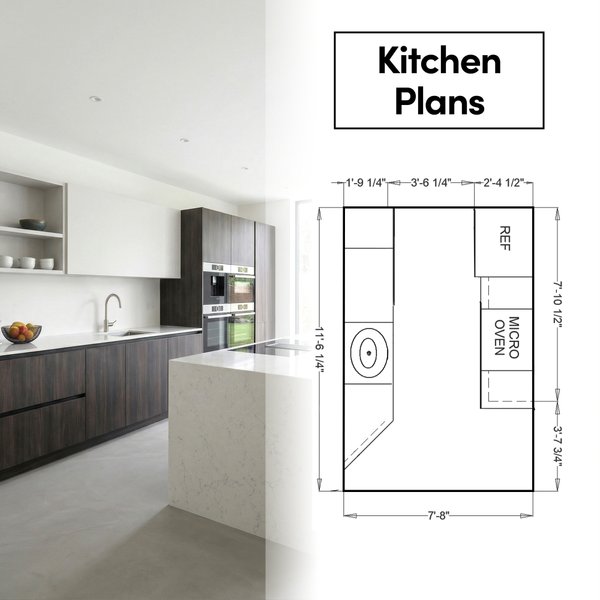

Also, explore our collection of bathroom projects that we put together showing their floor plan and estimated quote.
We take pride in providing both exceptional service and great electric radiant floor heating products. But don't just take our word for it, check out what some of our customers have had to say.

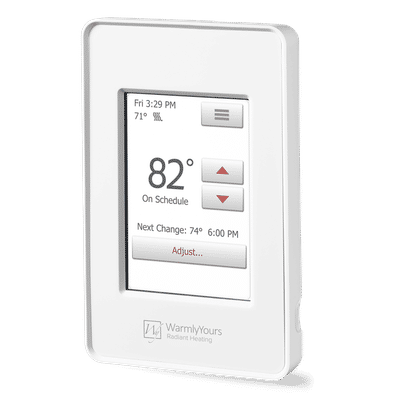

nSpire Touch Programmable Thermostat
We recently had to replace the thermostat for our WarmlyYours sunroom floor. The heated floor was installed in 2012 and this is the first problem we have had. We were pretty sure it was the thermostat when the floor went cold and after a visit from our electrician, he confirmed it was the GFI in the thermostat. The replacement thermostat arrived quickly and we had the old thermostat replaced. We are so happy to have our heated floor back in operation and so thankful for WarmlyYours! We have never been sorry for having heated floors installed in our sunroom and remodeled bathroom. It's the BEST!! We can't thank you enough!
Not only do they just sell you a product, but they follow up after delivery to make sure all is OK and offer 24/7 Tech support for installation issues which came in handy for me.
Very easy to DYI. The instructions and the videos on the website were extremely helpful. The product works great. Nice even heat distribution. I keep the floor temp same as room temp. Big difference in comfort level. Good stuff!

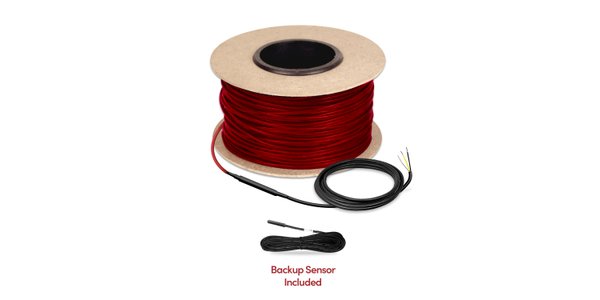

TempZone™ 3.7-Watt Floor Heating Cable
TempZone cable is an excellent, durable heating cable, possibly the stoutest I've worked with. The pricing structure is highly competitive, and in my case, beneath comparable products from at least two other companies.The product range is wide with many options displayed clearly and in an easy to reach modern website complete with shopping carts with log-ins, chat support, sales service. I was amazed at the level of detail applied in an architectural drawing, available as a free service, by the Tech Department. The supplied drawing had icon and color coded start / stop locations, the accurate measurements helped the install breeze by. The cable was well packaged, and shipped a day sooner than expected. I also received follow up service after the install by my representative.

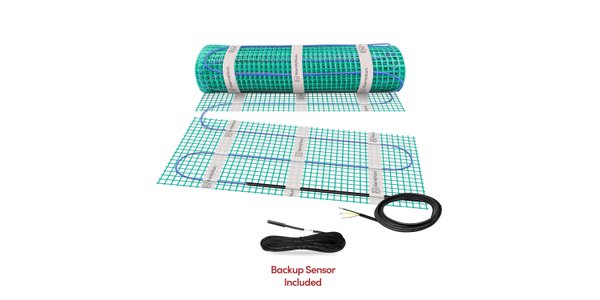

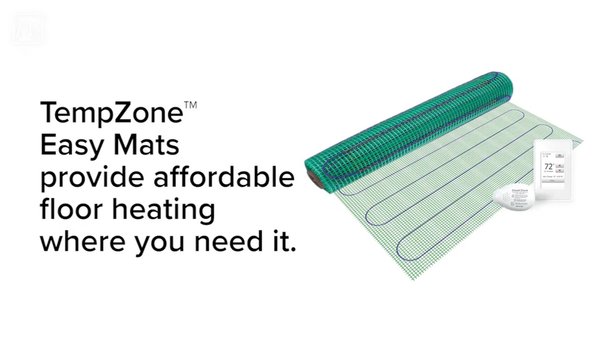

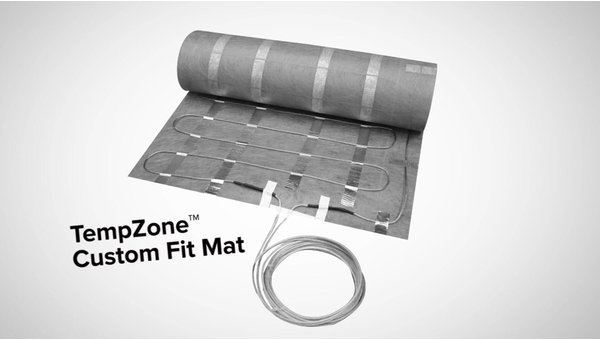

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
24 people found this helpful. Did you find this helpful? Yes NoPlease keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.
The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.
The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system. The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.
13 people found this helpful. Did you find this helpful? Yes NoThe answer to this question will depend on a whole host of variables related to electric floor heating, including, but not limited to, the run time (for supplemental heating, we usually recommend between 4-8 hours per day), the electric radiant floor heating system you're using, the total square footage, and your local electrical cost. Typically, the cost is just a few cents a day.
To figure out how much electric floor heating might cost to run for you, make sure to use our interactive Operating Cost Calculator.
12 people found this helpful. Did you find this helpful? Yes NoYes, in most cases, an electric floor heating system can be effective as a primary heat source. However, our TempZone™ and Environ™ systems are most commonly used as a secondary heat source, providing floor-to-ceiling radiant heat to any room in your home where you desire more warmth and comfort.

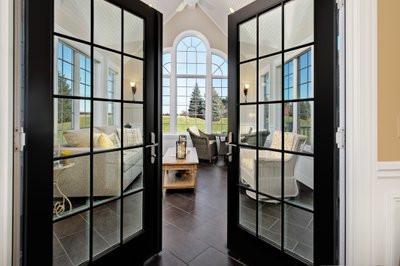

If you are considering electric floor heating for an addition to your home, such as a sunroom where you have no other source of heat, WarmlyYours offers an innovative online tool which calculates approximate heat loss. This tool can help you to determine if a WarmlyYours’ electric radiant floor heating system will provide your desired comfort temperature throughout the year. You can access the Heat Loss Calculator or you can call us at (800) 875-5285 and a Customer Service Representative will make the calculation for you.
8 people found this helpful. Did you find this helpful? Yes NoWhile both hydronic (heated water) and electric floor heating systems perform a similar function by providing radiant heat from beneath your floor, they do differ in some pretty crucial ways. Typically, using hot water instead of electricity will result in lower operational costs but significantly higher investment and maintenance costs. This usually means that hydronic heating systems are reserved for new construction projects (where it is easier to incorporate the boilers and pumps needed to operate the system) and electric floor heating is often used for remodeling projects in bathrooms, kitchens, etc. To learn more about the differences between these systems, check out this post.
7 people found this helpful. Did you find this helpful? Yes NoYes. While there are some floor heating systems that can be installed beneath floor joists, most electric radiant floor heating systems will need to be installed beneath the floor itself. This is why the best time to install electric floor heating is during a remodel or as a part of a new construction, when a floor is being installed anyways.
If you're interested in alternative radiant heating methods, check out our Radiant Panels, which are wall-mounted and use infrared technology to provide supplemental heating.
Electric floor heating works by having an electric heating cable installed underneath the flooring (embedded or floating, depending on the system and floor type), which is then wired to a special thermostat (either one specifically designed for electric radiant floor heating, like a WarmlyYours’ nSpiration Series control, or a third-party thermostat). When turned on, the heating cable emits heat upward through the flooring which is then radiated throughout the room, heating all solid surfaces.
5 people found this helpful. Did you find this helpful? Yes NoOne thermostat can control multiple heating mats/cables as long as all the heating elements are using less than 15 amps:
TempZone™ will cover aprx. 120 sq. ft. for 120V systems and 240 sq. ft. for 240V systems on one thermostat.

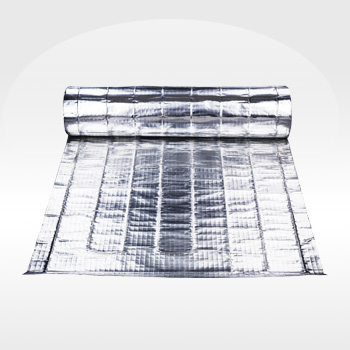

Environ™ will cover aprx. 150 sq. ft. for 120V systems and 300 sq. ft. for 240V systems on one thermostat.

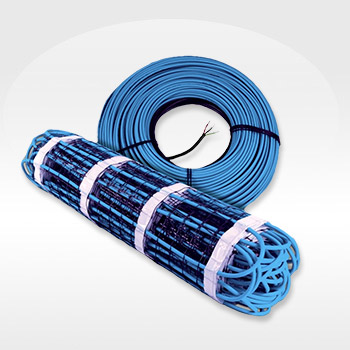

Slab Heat will cover aprx. 90 sq. ft. for 120V systems and 180 sq. ft. for 240V systems on one thermostat.
4 people found this helpful. Did you find this helpful? Yes NoTypically, electric floor heating is used as a supplemental heat source but in some cases, it can be used as a primary heat source. Electric floor heating is more energy efficient, less prone to spreading dust and allergens, and easier to control from room to room. Air-based heating systems can be used for both heating and cooling and can be a good way to control air quality in the home with regular maintenance.
For a more in-depth answer to this question, check out Your ‘Cheat Sheet’ for Radiant Heat vs. Forced Air.
The temperature of your floor can range anywhere between 75°F to 95°F. The floor's actual temperature will depend on a number of factors including the amount of heat loss that the room experiences as well as the room’s configuration. For instance, the warmth contained in a two story entry way would likely be less than that of a smaller, more enclosed area such as a bathroom. In a bathroom that is located on the second floor of your home or over another floor in your home that is typically heated, the temperature of your heated floor should easily reach a comfortable temperature of 85 degrees Fahrenheit, if the electric floor heating system is installed correctly. For the heat loss calculation for your specific room, you can access the Heat Loss Calculator or you can call us at (800) 875-5285 and a Customer Service Representative will make the calculation for you.

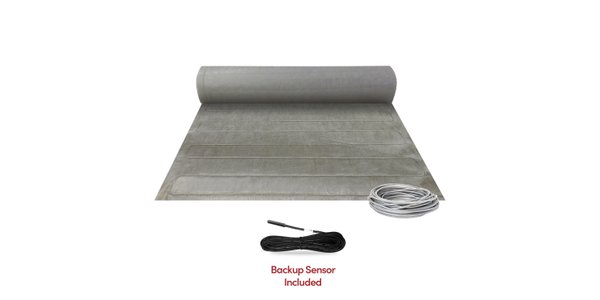

4 people found this helpful. Did you find this helpful? Yes NoWarmlyYours has recently begun including floor sensors with our heating elements to help ensure customers will have everything they need for optimal operation of their radiant heating systems.
The sensor included with your floor heating element can be installed with the heating system (the sensor is equally spaced between runs of the heating wire--see your install manual for more info). Installing this sensor with your floor heating control will enable energy efficient operation of the floor warming system based on the floor temperature instead of the ambient room temperature.
We generally recommend that you install a second, unconnected backup floor sensor alongside the primary one. In the very unlikely event that your first floor sensor is damaged, this install method will save you from having to pry up flooring to replace a floor sensor. You simply disconnect the damaged sensor from the thermostat and connect the backup sensor.
In addition to the floor sensor that was included with your heating element, our nSpiration Series thermostats also come with a floor sensor. If you purchase both a heating element and an nSpiration Series thermostat from WarmlyYours, you'll have a primary and a backup floor sensor for your system.
