nJoin 2.0 Power Module with Class A GFCI

nJoin 2.0 Power Module with Class A GFCI
Need help? Call our experts at 800-875-5285
Support Page

Features

  • Great for Large Projects: This device helps your main radiant heating thermostat handle larger projects
  • Sleek and Modern Design: This updated power module represents the fusion of form and function
  • Extensive Compatibility: Works with current (nJoy and nTrust 2.0) and previous (nSpire Touch WiFi, nSpire Touch, nTrust and nHance) thermostats
  • Two Connectors with Screw Terminals: These help make final connections in the field easier and safer
  • Safety Assured: cULus listed with a built-in GFCI for peace of mind

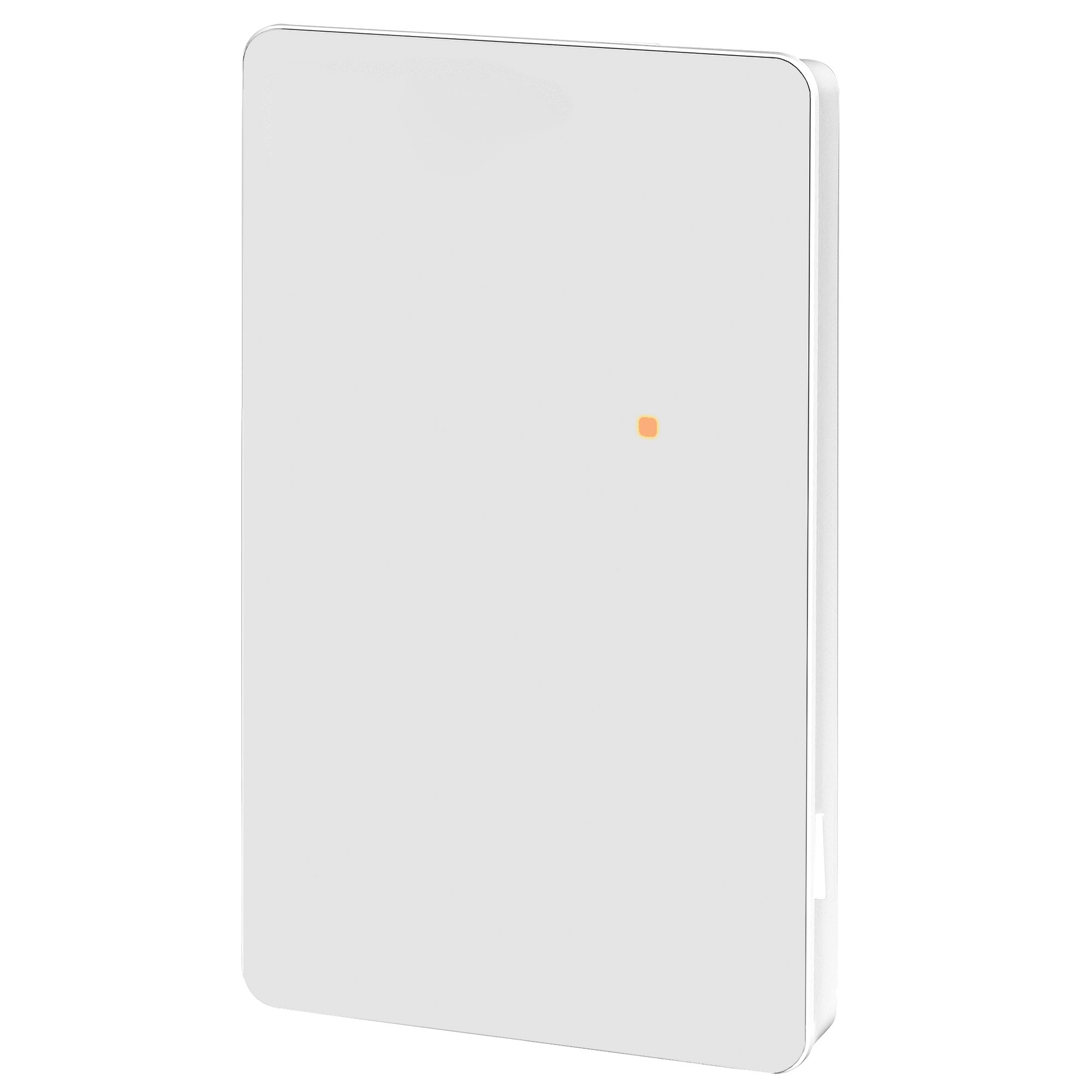

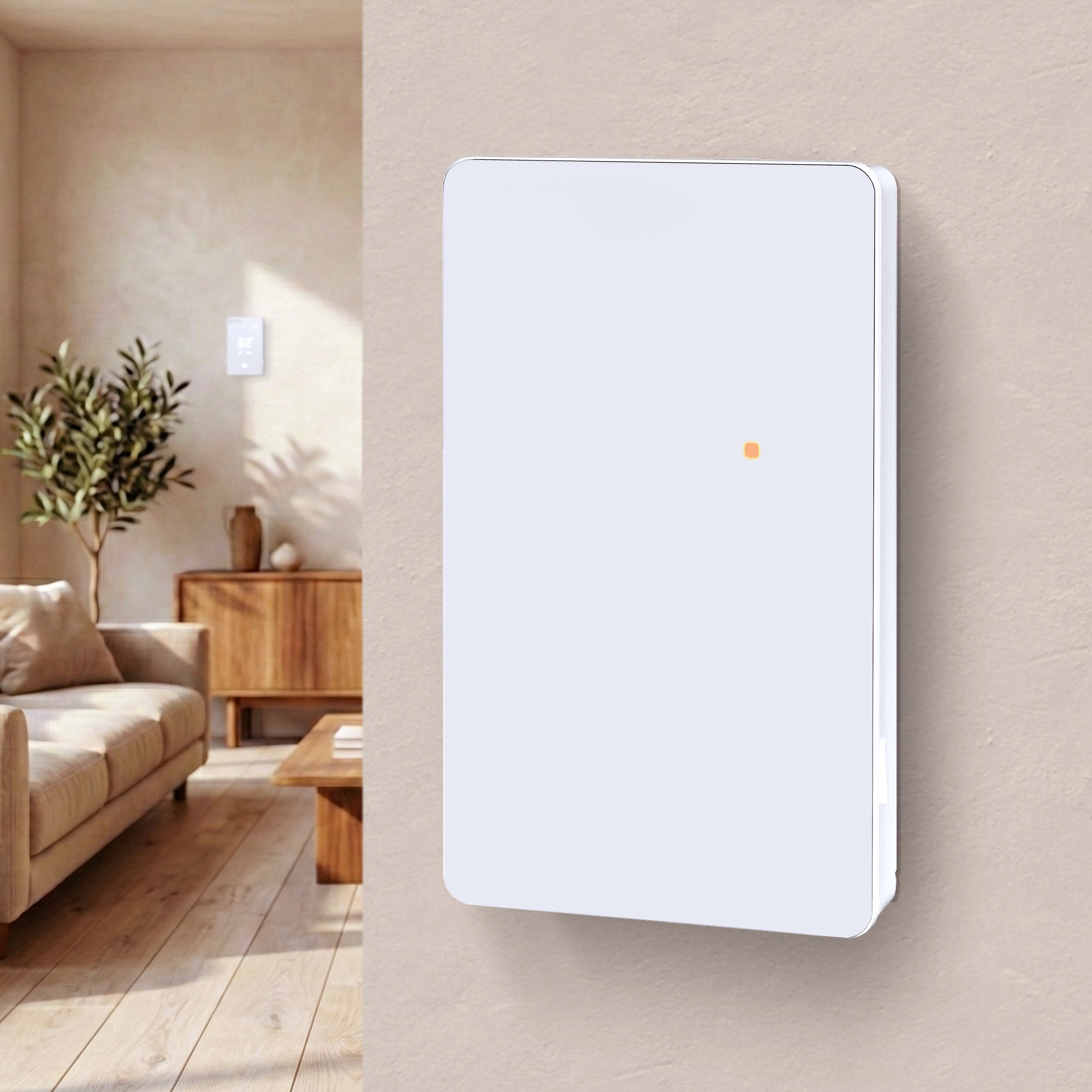

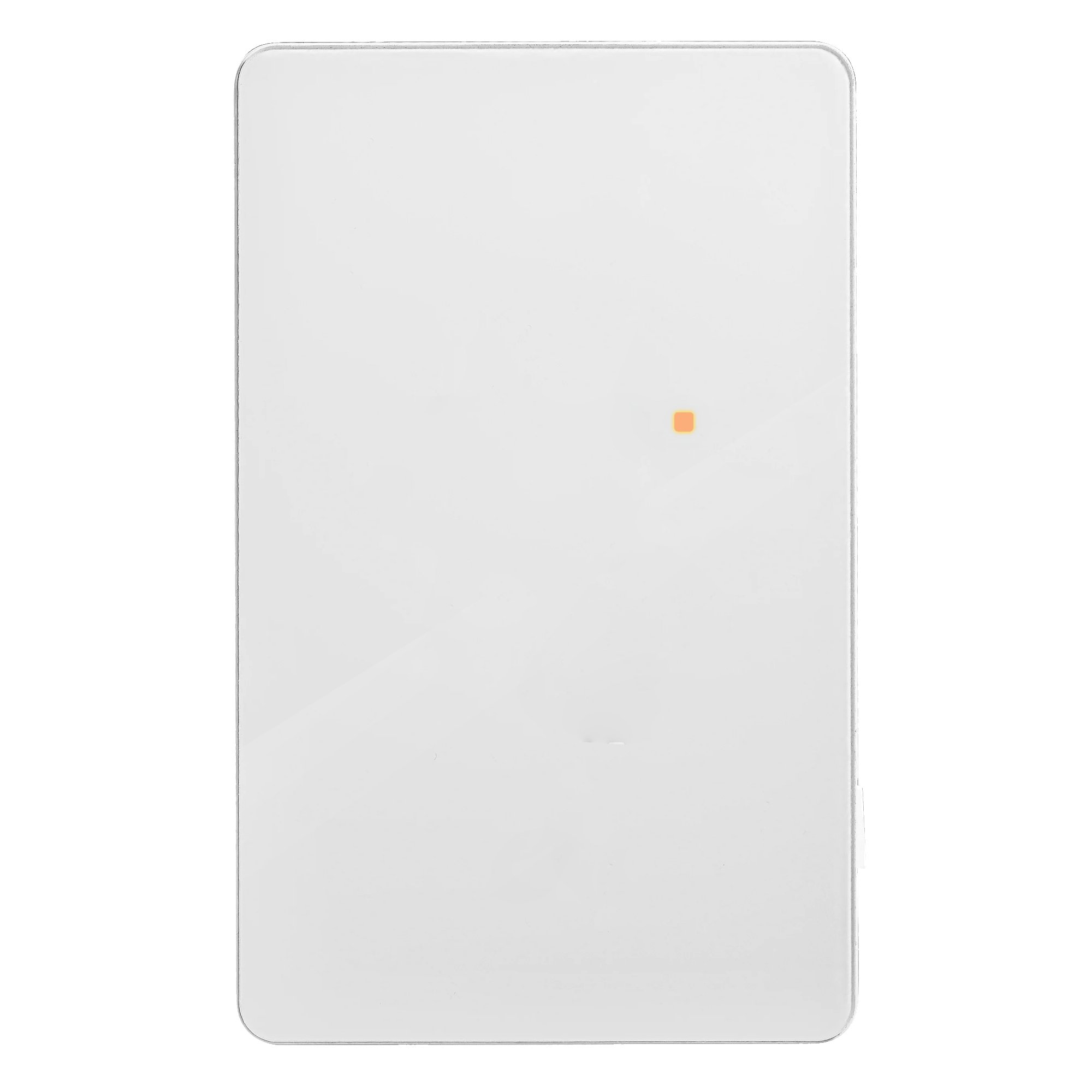

nJoin 2.0 Power Module Description

Some floor heating jobs are just too large for a single radiant heating thermostat to handle alone. The nJoin 2.0 power module is here to help you heat those larger projects.

The refined and modern-looking nJoin 2.0 links up to current (nJoy and nTrust 2.0) and previous (nSpire Touch WiFi, nSpire Touch, nTrust, and nHance) WarmlyYours radiant heating thermostats to increase the electrical output in 15 amp increments per module. This will help your heating system cover additional areas or large rooms, like basements, with a single thermostat.

The nJoin 2.0 features an attractive update to its design and is equipped with a dual-color LED indicator, offering a straightforward visual display of the unit’s status for effortless monitoring and troubleshooting. The LED changes color to convey different operational messages, ensuring quick and easy diagnostics.

Additionally, because the nJoin 2.0 doesn't provide any direct control functionality, it can be installed out of view if desired.

Comes with two connectors, one for the main thermostat and another for an extra power module if needed, that feature screw terminals for safe and easy installs.

Features:

  • Works with current (nJoy and  nTrust 2.0) and previous (nSpire Touch WiFi, nSpire Touch, nTrust and nHance) radiant heating thermostats.
  • 3-year warranty
  • Comes with screw terminals
  • Built-in self-testing, Class A GFCI
  • Dual voltage: 120V and 240V
  • cULus listed

Specifications

Warranty / Certifications

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Proposition 65 Compliant Yes
SDOC Contact Email Address kne@ojelectronics.com
SDOC Contact Name OJ Electronics
SDOC Contact US Mailing Address PO Box 565. Elm Grove, WI 53125
SDOC Contact US Phone Number 262-439-8112
UL Listing Number E157297
Warranty Limited 3-year warranty and lifetime technical support

Appearance

Color White Acrylic

Electrical

Connection 4 wires, double pole
Connection Method Hardwired
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)

Logistics

Country of Origin (COO) Malaysia

Product Dimensions

Depth 1.73″
Installed Depth 0.46″
Length 4.98″
Weight 0.4 lbs
Width 3.09″

Identifiers

SKU USG5-4000
UPC (GTIN-12) 881308080433
