Ember Flex Radiant Panel Heater- White - 500W - 35ʺ x 24ʺ - Dual Connection
Features
-

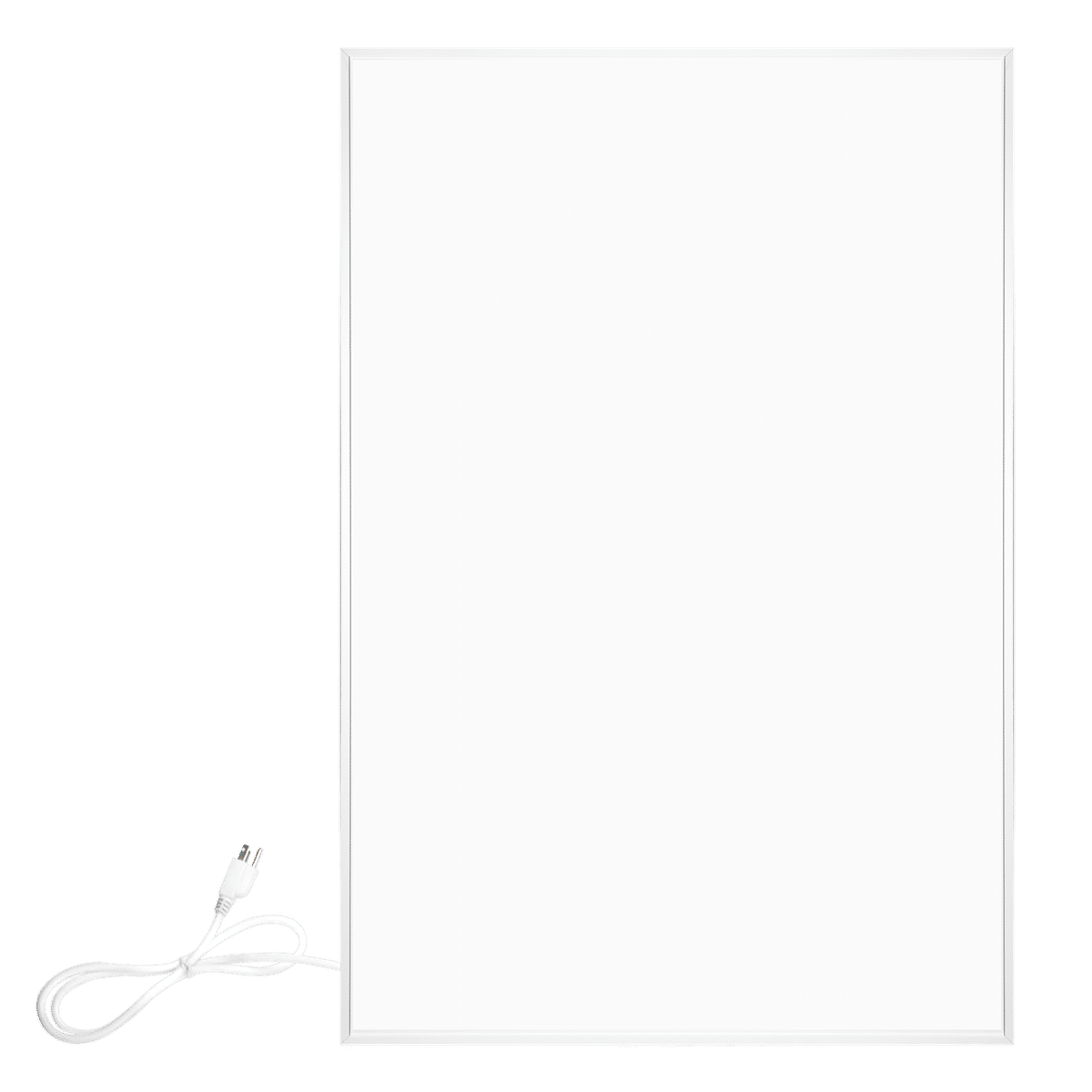

Attractive Design: This beautiful white panel, with an integrated frame, is 35” by 24”
-
Flexibility: Can be installed on your wall, attached to your ceiling, or used with a stand accessory
-
High Heat Output: This panel delivers an impressive heat output of 1,705 BTUs per hour
-

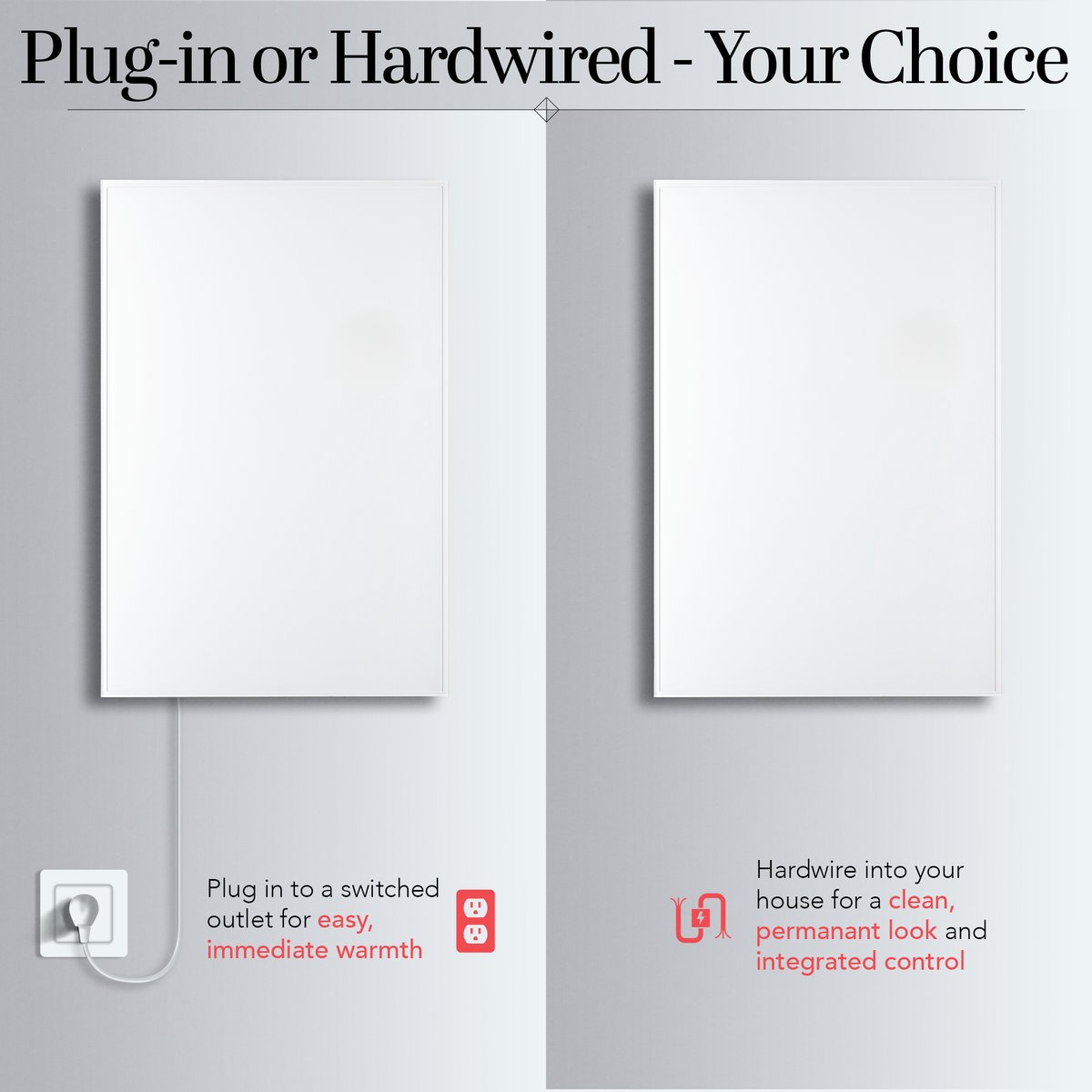

Dual Connection: Can be used "as is" for a plug-in connection or the cord can be modified by a licensed electrician for a hardwired connection
-
Compatible Accessories: towel bar (IP-EM-ACC-BAR) and stand attachments (IP-EM-ACC-STND)
Ember Flex Radiant Panels Description
Infrared radiant heating panels, like the ones from our Ember Flex line, offer a unique and aesthetically pleasing, and safe, alternative to traditional space heaters. An Ember Flex radiant panel heater is an attractive and affordable way to add much needed supplemental warmth to hard to heat rooms in your home. These panels use infrared waves to efficiently transfer radiant energy to solid objects, which is similar to how the sun warms objects. With its white finish and integrated frame, this panel functions not only as a reliable heating device, but also as a design element. These panels are also dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
This panel is 35” by 24” and can be installed vertically or horizontally on your wall. Additionally, it can also be used horizontally with a low-profile stand accessory (sold separately—for plug-in models only) to create a movable heat source. This panel also comes with all of the hardware necessary to attach it to your ceiling. These panels are also unique in that they have one of the highest possible efficiency rates and consume the least amount of energy possible*.
These wall mounted electric heaters are covered by a 5-year limited warranty.
* Infrapower Manufacturing Ltd.
Features:

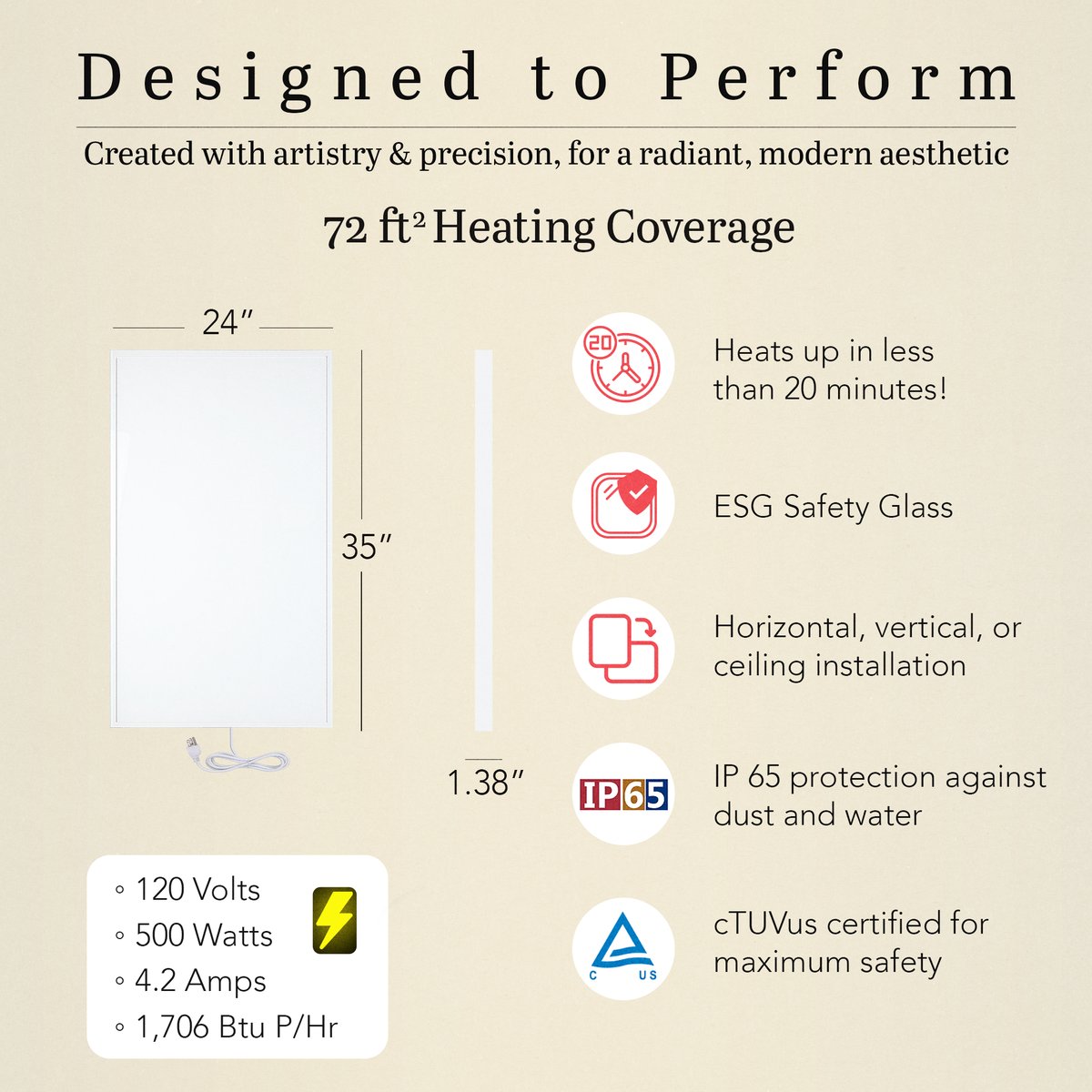

- Dimensions: 35” x 24” x 1.5”
- Can be hung on your wall, attached to your ceiling, or used with stand accessory
- Provides an impressive heat output of 1,705 BTUs per hour
- Dual connection (120 VAC) can be used plug-in or hardwired (with modification)
- Compatible accessories: towel bar (IP-EM-ACC-BAR) and stand attachments (IP-EM-ACC-STND)
Specifications
Electrical
| Amps | 4.17 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 6′ |
| Ohms | 28.78 Ω |
| On/Off Switch | No |
| Plug-Type | NEMA 5-15 (Type B) |
| Thermal Power | 0.5 kW |
| Voltage | 120 V |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| RoHS Compliance | 2002/95/EC (RoHS 1) |
| Warranty | 5 years |
Performance
| Average Surface Temperature | 194 °F |
| BTU Per Hour | 1706 Btu |
| Heating Coverage | 71 ft² |
| Surface Safety Limit | 248 °F |
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Depth | 0.98″ |
| Length | 35″ |
| Weight | 15.84 lbs |
| Width | 2′ |
Appearance
| Finish | White |
| Model | Ember Flex White - 35″ x 24″ |
| Size | 35″ x 24″ - 500W |
Installation
| Mounting Locations | Wall, Ceiling, or Freestanding (with Accessories) |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-FLX-WHT-0500-CW |
| UPC (GTIN-12) | 881308067083 |
Controls
A great control is the secret to any great heating system.
Accessories and Spare Parts
Feel free to chat us if you have any questions about these items.
Documents & Manuals
Installation
- Ember Mounting Template For IP-EM-FLX-WHT-0500-CW (35″ X 24″) and IP-EM-FLX-WHT-0700-CW (47″ X 24″) (English)
- Ember Radiant Panel Installation Manual (English)
Warranties
Sell Sheets
Catalogs
Customer Questions & Answers
Ember Flex Radiant Panels has 26 Questions and Answers.
How hot is the infrared heating system when in use?
The heater is very hot during use (up to 120° C or 248° F).
How far from the radiant panel will the heat substantially radiate and where should it be aimed?
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
Can an Ember radiant panel be mounted on the ceiling?
Only the Ember Flex radiant panels can be mounted from the ceiling and they come with all of the necessary hardware to accomplish this.
None of the radiant panel heaters from the Ember Glass or Ember Mirror lines can be mounted from the ceiling.
How do you keep a sunroom warm in the winter?
Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.
How quickly does the radiant panel heat up?
The startup heating time for this infrared heating system is approximately 5 to 10 minutes. However, your room will not feel warmer immediately because the cold objects in the room (furniture, walls, ceilings, floors, etc.) need to warm up first. Once these surfaces are heated via infrared heating, the warmth will spread throughout the room.
View all 26 Questions and Answers
Customer Reviews
Ember Flex Radiant Panels achieved an average rating of 4.9 stars with 9 reviews by our customers.
It works just as expected
Rachel P., Vashon, WA on 02/18/2024
I have two small, unheated bathrooms. The panels I installed are working perfectly to heat the spaces well enough to dry the showers and towels. That whole end of the house is more comfortable now that the central heat is not being sucked out through the unheated spaces. I find the towel bars work well to dry clothing as well as towels.
Our bathroom is now WARM!
Peter H., Lake Zurich, IL on 11/25/2023
We took the bathroom down to the studs and subfloor and installed WarmlyYours floor coils plus two ceiling panels, plus fresh paint and floor quartz slabs. We are now sandwiched between two layers of warmth, which we really appreciate now that winter is here.
Best heater
Anonymous, Kitchener, ON on 06/28/2022
Provides long lasting heat without drying out the air. In winter, the windows can stay open longer.
Perfect for our new bathroom!
Jo J., Banning, CA on 04/03/2022
Our master bathroom is always freezing! We live in one of those homes that doesn't have a bathroom door in the master bedroom. So, when we decided to remodel, I was all about doing something to make the area warmer. (You wouldn't think this is something to worry about in SoCal, but it is!) We talked about building a door to keep the heat in, but that was going to be a big job and we weren't sure we would like another door, in a small space. I started investigating heat panels as a different option and found WarmlyYours online. Our contractor had never heard of the panel, but was game to install it. I bought the timer switch to go with and we had it hardwired in. Wow, what a difference it has made! Not too hot, just enough to take the cold edge off. The panel looks great on the wall; we are so happy to find this unique answer to our remodel problem. I would (and have) recommend these radiant heat panels to anyone.
Great product and courteous customer service
Viola M., Barnstable, MA on 12/09/2021
I appreciated Lynn from customer service reaching out to us before shipping the radiant panel to see if we had any questions and offer help. The electrician who hardwired the unit with a countdown timer said the installation went smoothly. The panel looks great and works as described. It heats up pretty quickly, but it takes about 30-45min to feel the effect in the room. The panel matches the room size and is used as supplemental heat to increase the temperature in the room for short periods.
Nice panel, easy ceiling install
Jeremy L., Erie, CO on 11/17/2021
Installed and using the Ember Flex Radiant Panel Heater- White - 500W - 35” x 24”. Panel install was easy but programming the Leviton Digital Timer Switch is a challenge. For us it's critical to have the panel on a timer of some sort because it not temperature controlled (either on or off) and consumes 500w of electricity when on or about $2/day.
Customer Service (Account Manager, Jennifer Melus) was great.
Jay S., Seattle, WA on 07/15/2021
Customer Service (Account Manager, Jennifer Melus) was great. I had a problem with a defective panel that was burning off the white paint, emitting VOC. Jennifer was very helpful in replacing the defective panel. Although there were a few glitches during the process, their over all customer service was excellent! This is a huge reflection on the company, as they not only stand by their product but their Customer Service was very good!
Review
Jay S., Seattle, WA on 07/15/2021
Customer Service (Account Manager, Jennifer Melus) was great. I had a problem with a defective panel that was burning off the white paint, emitting VOC. Jennifer was very helpful in replacing the defective panel. Although there were a few glitches during the process, their over all customer service was excellent! This is a huge reflection on the company, as they not only stand by their product but their Customer Service was very good!
Shipping issues
Shawn H., London, ON on 03/16/2021
I ordered this product and quickly received shipment of not one but 2 heated panels both were white glass and the plug in versions problem was I ordered ONE mirror hardwired version, It took many calls texts and emails to get sorted out and after 4 weeks I finally got another shipment This time it was a mirror but it WAS NOT a hardwired version, After consulting my electrician and WarmlyYours tech support I decided to keep it and cut off the plug to wire it directly, Throughout this somewhat frustrating transaction the salesman Troy Barton was extremly helpful prompt and pleasant to deal with. The problems with wrong product shipment were elsewhere in the supply chain. Mirror is not installed yet but seems very well made.
Response from WarmlyYours:
Shawn, we apologize for the original shipment issue. Our current version of Ember panels are dual connection, meaning they can be used “as is” to plug into a standard 120 VAC outlet or they can be modified by a licensed electrician to have a hardwired 120 VAC electrical connection.
