Prodeso Membrane Roll 54 Sq. Ft. (3′ 3.4″ x 16′ 4.9″)


Part Number: TC-MEM-BL-054
This support page provides publications, manuals, specifications, videos, and common support questions


question-mark
Common Support Questions (19)

publication
Publications and Manuals (5)

specifications
Specifications (12)

Videos (6)

Related Items (4)

Similar Items (3)

Create a new Support Request

Shop Now

Common Support Questions


Should I be concerned about electric floor heating melting the toilet connection's wax ring?

To prevent any melting, ensure that the heating wire is at least 4” from the toilet wax ring.

Need more help? View support options

Can I put furniture on top of underfloor heating?

Yes, but any furniture that may trap heat, such as pieces with an enclosed bottom, should be avoided. Furniture on legs with a clearance of at least 3" is permissible.

Need more help? View support options

What type of floor preparation is required for Luxury Vinyl Tile (LVT) and radiant heating?

The subfloor will need to be prepared as per the instructions of the self-leveling cement (SLC) used. Please note that most self-leveling products require the use of a primer as specified by the SLC company.

Need more help? View support options

How many square feet of floor heating can be connected to one thermostat?

One thermostat can control multiple heating mats/cables as long as all the heating elements are using less than 15 amps:

TempZone™ will cover aprx. 120 sq. ft. for 120V systems and 240 sq. ft. for 240V systems on one thermostat.

Environ™ will cover aprx. 150 sq. ft. for 120V systems and 300 sq. ft. for 240V systems on one thermostat.

Slab Heat will cover aprx. 90 sq. ft. for 120V systems and 180 sq. ft. for 240V systems on one thermostat.

Need more help? View support options

Would the TempZone installation process be different if Luxury Vinyl Tile was installed in a bathroom?

No. A bathroom floor would be installed in the same way. Our TempZone floor heating systems are wet-location listed and ideal for bathroom floors.

Need more help? View support options

Is installing a floor heating system for LVT the same as for ceramic or porcelain tile?

Yes, Luxury Vinyl Tile (LVT) is typically installed over the embedded heating element using self-leveling cement (SLC). Many people choose to use SLC when installing tile over floor heating.

We do not suggest using thinset to encase the heating wires with LVT, as it is very difficult to get thinset completely flat.

Need more help? View support options

What thickness is required for self-leveling cement when installing floor heating for Luxury Vinyl Tile?

We suggest the heating product be embedded in a minimum of 3/8" of self-leveling cement (SLC). Always check with the manufacturer for specific recommendations.

Need more help? View support options

Can you use glue-down Luxury Vinyl Tile products with this floor heating system?

Yes, if the flooring manufacturer recommends this installation method. In most cases, the heating element will still need to be embedded in self-leveling cement before the flooring is installed.

Need more help? View support options

Is there a way to heat vinyl flooring without embedding the heating system, such as a floating floor heating system?

There are heating systems designed for floating floors, such as our Environ system. However, the flooring must be rigid enough so it does not mold itself to the heating cables over time.

Check the flooring manufacturer's floor heating recommendations. In most cases, the heating system will need to be embedded beneath the flooring. Check for all "flatness" requirements for the flooring you choose. The flattest floors utilize self-leveling cement when installed correctly.

Need more help? View support options

What is the difference between crack isolation and a decoupling membrane?

A decoupling membrane protects the installation from differential expansion/contraction between the substrate and the flooring, relieving almost all shear stresses. Crack isolation protects the installation by isolating the flooring from minor in-plane substrate cracking.

Need more help? View support options

Can I use self-leveling cement over Prodeso membrane?

Self-Leveling (SLC) Cement is not recommended for use over Prodeso. Contact WarmlyYours if self-leveling underlayment is required.

Need more help? View support options

How do I install tiles over the Prodeso membrane?

Install membrane over entire floor first, then heating cable, then do the tiles 1 or 2 at a time. Never cover the Prodeso entirely with thin-set first. Only apply as much thin-set as needed to lay a couple of tiles at a time.

Need more help? View support options

Are small mosaic tiles a good choice for installation over prodeso membrane?

Not a good choice for mosaic tile work, Prodeso requires 2“ x 2“ or larger tiles.

Need more help? View support options

Do I need expansion joints when using Prodeso installation membrane?

Prodeso installation membrane does not eliminate the need for expansion joints (adhere to local codes).

Need more help? View support options

How do I flatten the Prodeso membrane when it arrives in a roll?

Unroll the membrane the day before installation to flatten it and avoid any potential ‘memory’ due to environmental conditions.

Need more help? View support options

Is Prodeso membrane waterproof?

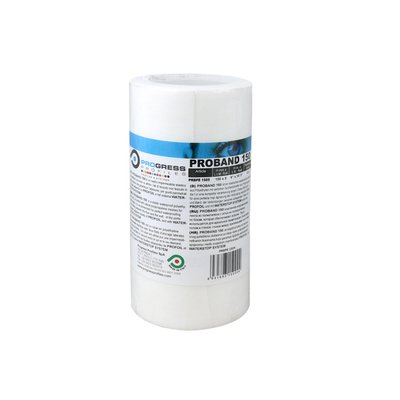

Waterproofing is recommended under and around tubs/showers. It’s also recommended wherever the tile could possibly be exposed to considerable amounts of water. Prodeso is naturally waterproof, but the corners and seams need to be treated with waterproofing tape and thin-set. (Use Pro WP Waterproofing Band 5“ - Soft polyethylene tape – to seal seams.)

Need more help? View support options

Is there anything important to note when laying Prodeso installation membranes next to each other?

When laying Prodeso installation membranes adjacent to each other, align the square relief pegs for the later heating element cable runs.

Need more help? View support options

What spacing is used for the wire with Prodeso Cable Installation Membrane?

The wire spacing in the Prodeso Cable Installation Membrane is 3.75“, or every 3rd peg.

Need more help? View support options


Publications and Manuals



Specifications


Product Dimensions

Coverage 53.87 ft²
Length 16′ 4.9″
Stud Spacing 1.25″
Thickness 0.219″
Weight 10 lbs
Width 3′ 3.4″

Installation

Minimum Tile Size 2″ x 2″
Recommended Cable Spacing 3.75″, 5″

Identifiers

SKU TC-MEM-BL-054
UPC (GTIN-12) 881308051419

Appearance

Type Membrane

Warranty / Certifications

Warranty 10 years
