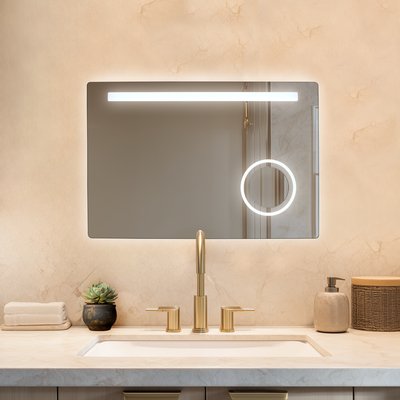

Judy 36ʺ X 24ʺ Wall-mounted LED Mirror with Built-in Magnifying Mirror and Defogger
Part Number: MR-3624H-JUD
This support page provides publications, manuals, specifications, videos, and support articles
This support page provides publications, manuals, specifications, videos, and support articles
Publications and Manuals (3)
Specifications (28)
Videos (1)
Articles (6)
Similar Items (3)
Create a new Support Request
Shop Now
Publications and Manuals
Specifications
Electrical
| Amps | 0.17 A |
| Connection Method | Hardwired |
| Frequency | 50/60 Hz |
| LED Light Bulb Life | 50,000 hours |
| Voltage | 120 V |
| Watts | 20 W |
Warranty / Certifications
| Approvals | cULus listed components |
| Ingress Protection (IPxx) Rating | IP44 |
| Warranty | 2 years |
Logistics
| Country of Origin (COO) | China |
| Package Contents | Mirror assembly, mounting kit, and installation manual |
Product Dimensions
| Depth | 1.25″ |
| Height | 24″ |
| Size | 36″ x 24″ |
| Weight | 27.7 lbs |
| Width | 36″ |
Construction
| Frame Material | Stainless Steel |
| Mirror Material | Copper-free glass |
Appearance
| LED Color Rendering Index (CRI) | 100 |
| LED Color Temperature | 3000K (Warm) or 6500K (Cool) |
| Lumens | 1620 lm |
| Mirror Edge Type | Polished compound bevel |
| Mirror Thickness | 1.181″ |
| Shape | Rectangular |
Installation
| Mounting Location | Wall |
| Mounting Orientation | Fixed |
Identifiers
| SKU | MR-3624H-JUD |
| UPC (GTIN-12) | 881308055714 |
