Relay with built-in transformer 120V

The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.

Need more help? View support options

One thermostat can control multiple heating mats/cables as long as all the heating elements are using less than 15 amps:

TempZone™ will cover aprx. 120 sq. ft. for 120V systems and 240 sq. ft. for 240V systems on one thermostat.

Environ™ will cover aprx. 150 sq. ft. for 120V systems and 300 sq. ft. for 240V systems on one thermostat.

Slab Heat will cover aprx. 90 sq. ft. for 120V systems and 180 sq. ft. for 240V systems on one thermostat.

Need more help? View support options

Most low voltage HVAC thermostats are OK to use with tile floors. If you are heating wood, vinyl, carpet, or any other flooring products that have a "maximum temperature" limit, then low voltage HVAC thermostats are not recommended UNLESS they have an input for a floor sensor. Check with the low voltage HVAC thermostat manufacturer about floor sensor inputs first, before buying a third-party integration kit for these types of flooring products.

Need more help? View support options

All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".

Please see this video on how to install a WarmlyYours nSpiration Series thermostat.

Need more help? View support options

If multiple Integration Kits are needed, we suggest using 240V Integration Kits and 240V heating elements. See our support area for the appropriate diagram.

Need more help? View support options

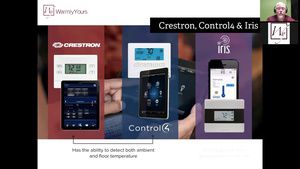

WarmlyYours suggests contacting the manufacturer of the home automation system to determine compatibility or how it recommends operating an electric floor heating system.

Need more help? View support options

If the smart thermostat cannot process a floor sensor reading, it is not compatible and the integration kit will not resolve this.

Need more help? View support options

22 Amps.

Need more help? View support options

5 mA GFCI breakers, sized by a local electrician in compliance with local electrical codes.

Need more help? View support options

The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.

Need more help? View support options

That depends on which thermostat you buy, how big a space that will be heated, and the voltage available and voltage of the heating elements.
