WarmlyYours Ice Shield Roof and Gutter Deicing Cable Kit, Plug-in, 120V (80')


Part Number: ETC120-5W-080-WY
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (8)

publication
Publications and Manuals (2)

specifications
Specifications (23)

Videos (2)

Articles (6)

Similar Items (8)

Create a new Support Request

Shop Now

Common Support Questions


Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options

WarmlyYours does not recommend installing de-icing systems on ribbed metal roofs. This is because ribbed metal roofs typically aren’t flat enough for attachment of the mounting pads or proper contact of the cables with the roof.

Need more help? View support options

NEVER use an extension cord. If you do not understand the electrical requirements needed regarding the electrical receptacle plug, contact your local electrical inspector or a licensed electrician.

The reason for this is due to safety and performance of the system. Extension cords are often not properly selected and will degrade, potentially leading to electrical shorts or other hazards such as fire. Roof de-icing cables are designed to be connected directly to a properly rated outlet, and the length and type of extension cords may not be rated for the same power load, leading to insufficient power supply, potential damage to the cables, and further safety risks including their ability to prevent ice dams on your roof.

Need more help? View support options

Do NOT use WarmlyYours constant wattage ice shield roof and gutter cable on rubber or rubber-membrane roofs.

Need more help? View support options

No, typically leaf guards need to be removed for the deicing cable to be installed in the gutter to work effectively.

Need more help? View support options

As the names imply, constant wattage cable uses fixed wattage output per linear foot and does not automatically adjust in response to temperature changes. Self-regulating cable is manufactured with a resistance matrix placed between its 2 buss wires that varies the ohms resistance per linear foot to automatically adjust in response to temperature changes. Learn more about this in our blog Self-Regulating vs. Constant Wattage Heating Cables.

Need more help? View support options

WarmlyYours roof and gutter deicing self-regulating cable loses its power ramp-up ability at about 5-10 years, but it will still work at its rated wattage for years. Properly installed WarmlyYours roof and gutter constant wattage cable usually lasts well beyond its warranty period.

Need more help? View support options

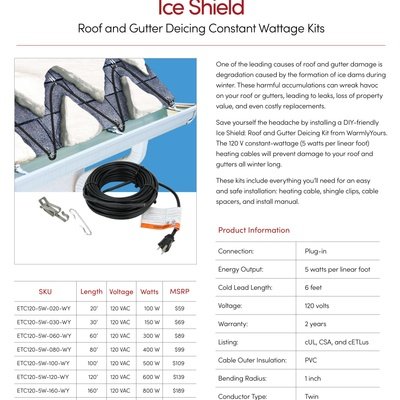

Publications and Manuals



Specifications


Electrical

Amps 3.33 A
Cable Construction Twin conductor
Cable Type Constant Wattage
Conductor Insulation XLPE
Connection Method Plug-in
Ohms 36.04 Ω
Outer Insulation PVC
Plug-Type NEMA 5-15 (Type B)
Plug-in Cord Length 6′
Voltage 120 V
Watts 400 W
Watts Per Ft. 5 watts per linear ft.

Warranty / Certifications

Approvals cUL Listed, CSA Listed, and cETLus Listed
Warranty 2 Year Warranty

Product Dimensions

Cable Cross Section 1/4" x 3/16"
Cold Lead Length 6′
Heating Cable Length 80′
Weight 3.8 lbs

Logistics

Country of Origin (COO) China

Installation

Minimum Bend Radius 1″
Minimum Installation Temperature 15°F (-10°C)

Identifiers

SKU ETC120-5W-080-WY
UPC (GTIN-12) 881308053901
