CeraZorb® Insulating Synthetic Cork Underlayment (4’ x 4’) - 320 sq.ft. - Pack of 20 Sheets
Part Number: CZRG-SH6MM-48X48-P20
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions (1)

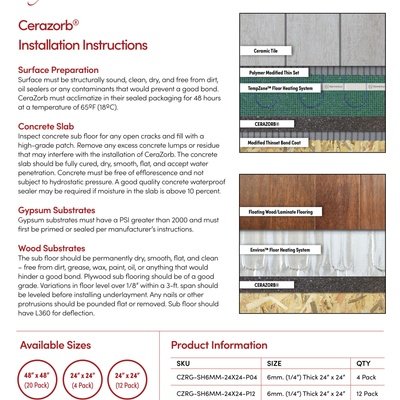

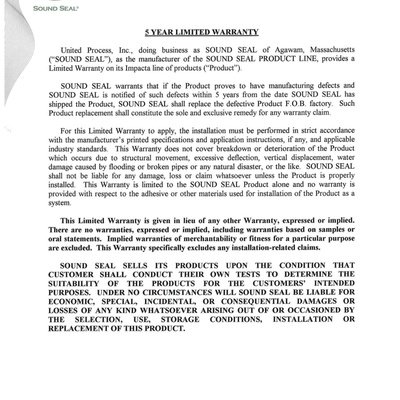

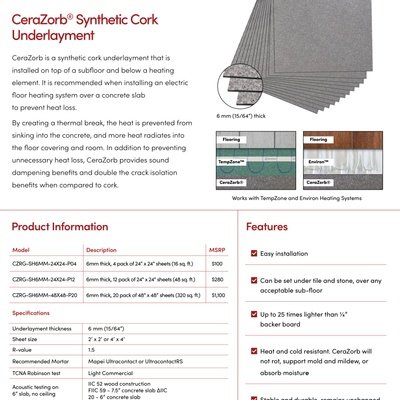

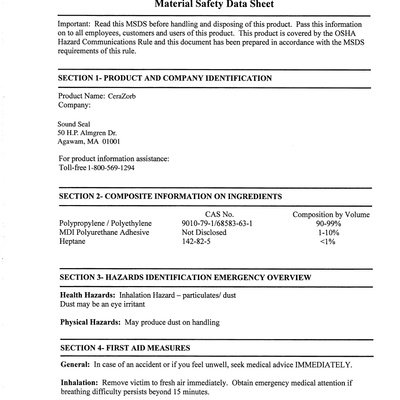

Publications and Manuals (4)
Specifications (14)
Videos (5)
Articles (4)
Similar Items (6)
Create a new Support Request
Common Support Questions
One thermostat can control multiple heating mats/cables as long as all the heating elements are using less than 15 amps:
TempZone™ will cover aprx. 120 sq. ft. for 120V systems and 240 sq. ft. for 240V systems on one thermostat.
Environ™ will cover aprx. 150 sq. ft. for 120V systems and 300 sq. ft. for 240V systems on one thermostat.
Slab Heat will cover aprx. 90 sq. ft. for 120V systems and 180 sq. ft. for 240V systems on one thermostat.
Need more help? View support options
Publications and Manuals
Specifications
Insulation Specification
| Acoustic testing on 6" slab, no ceiling | IIC 52 wood construction. FIIC 59 - 7.5" concrete slab. ΔIIC 20 - 6" concrete slab |
| Compressive Strength | 34 psi @ 10% Deformation |
| Material | Hemi-crystalline Thermoplastic |
| Thermal Insulation | 1.5 R-Value |
Logistics
| Country of Origin (COO) | United States of America |
Product Dimensions
| Coverage | 320 ft² |
| Depth | 0.2362″ |
| Length | 24″ |
| Weight | 14 lbs |
| Width | 24″ |
Identifiers
| SKU | CZRG-SH6MM-48X48-P20 |
| UPC (GTIN-12) | 881308069988 |
Warranty / Certifications
| TCNA Robinson test | Light Commercial |
| Warranty | 5 years |
Videos
Item Videos
Product Line Videos
Articles
Cerazorb layers. Is it OK to put one layer of Cerazorb over another?
Cerazorb Specs and Installation Exclusions
How to Install Cerazorb to Cement Slab. Can Vinyl (LVT/VCT) be installed directly on Cerazorb?
How to Install Cerazorb Under A Floating Floor
Cerazorb Specs and Installation Exclusions
How to Install Cerazorb to Cement Slab. Can Vinyl (LVT/VCT) be installed directly on Cerazorb?
How to Install Cerazorb Under A Floating Floor
