Outdoor Snow Melting Junction Box - Large - In-Ground
Snow Melting System Junction Boxes Description

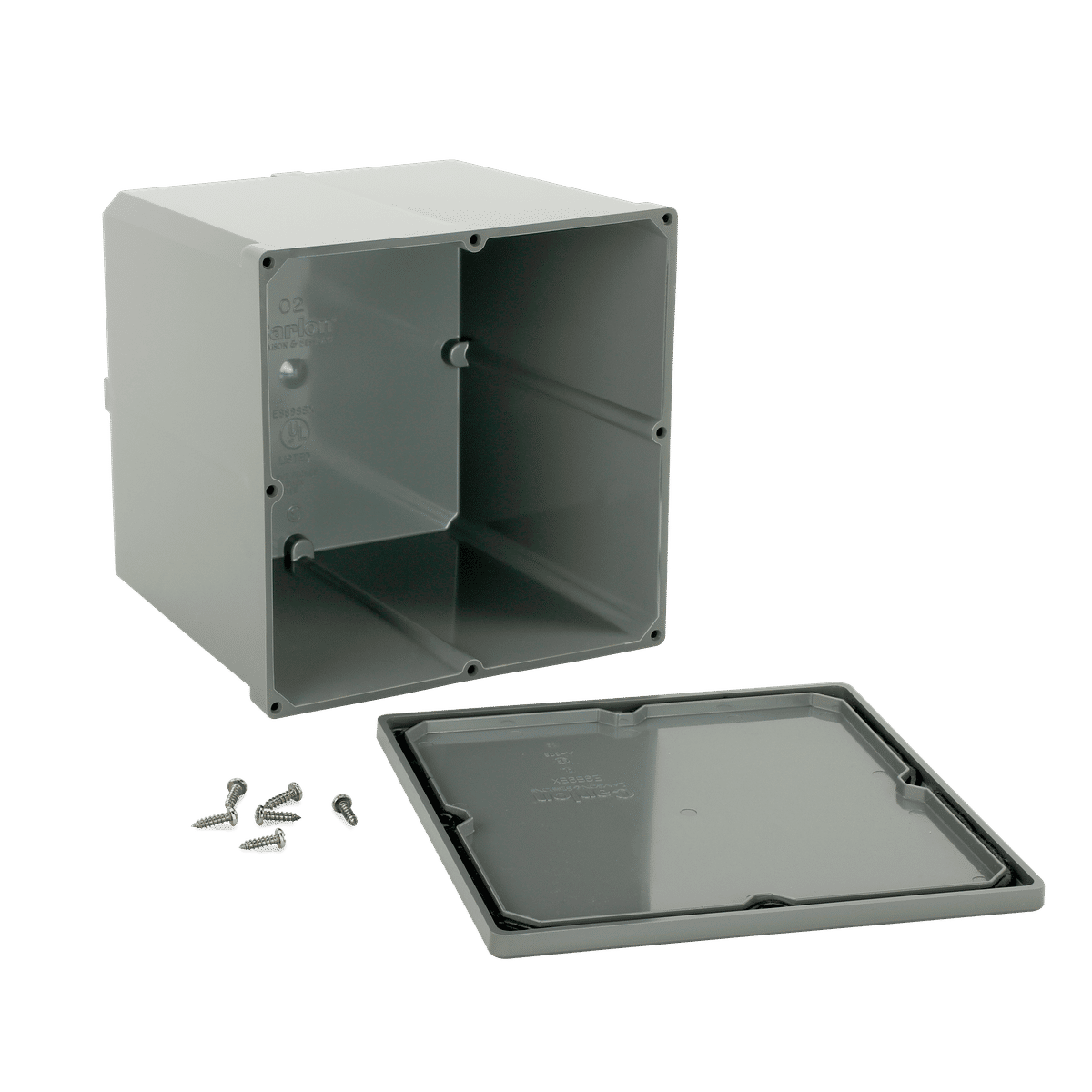

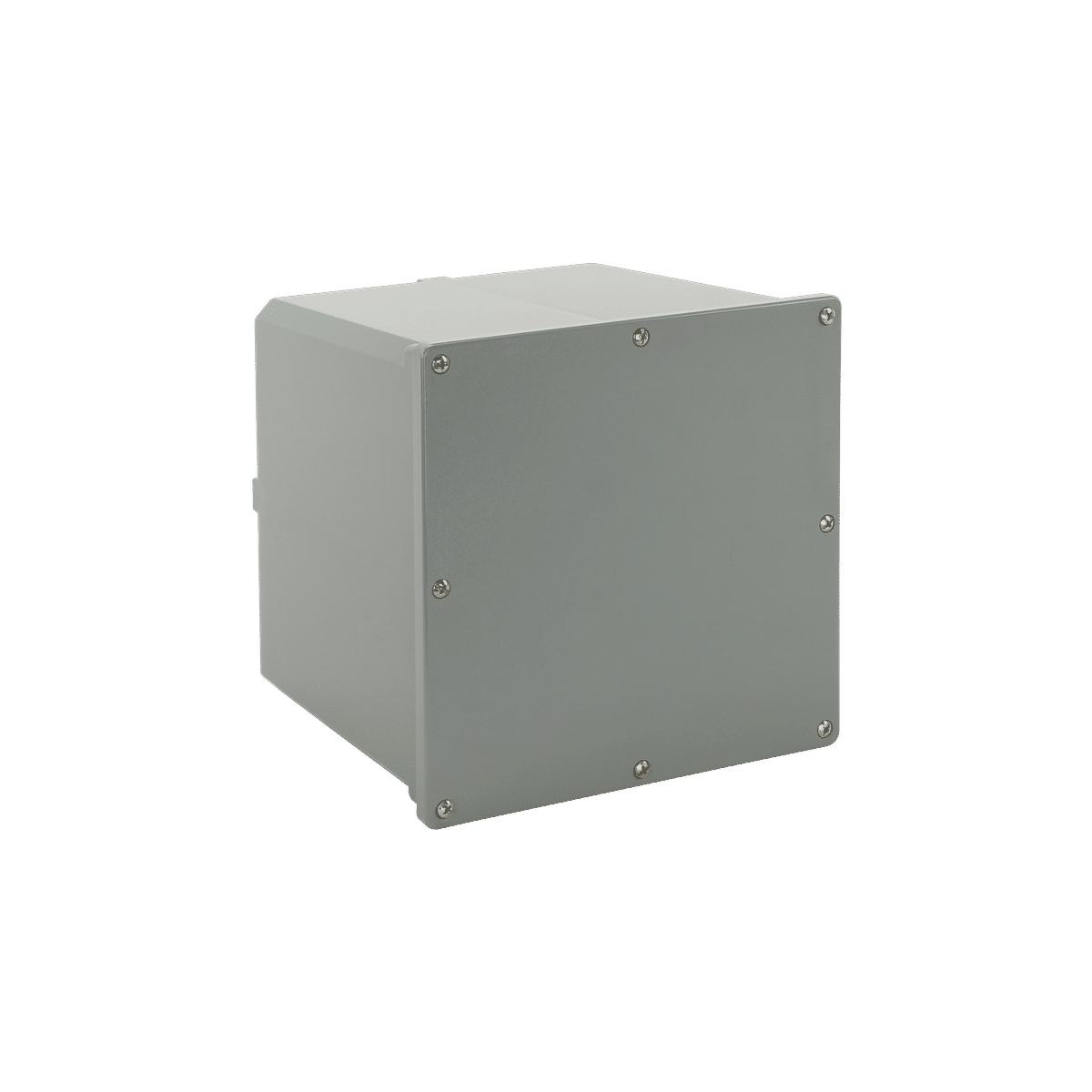

This molded, non-metallic 8" x 8" x 7" junction box (actual dimensions: 8.25" W x 8.25" H x 7.75" D) can be used in combination with a WarmlyYours snow melting system. This device serves as an intermediary if the cold leads from your snow melting heating elements are too short to reach your relay panel. This junction box can accommodate between 3 to 8 cold leads. It features in-ground installation with a NEMA 4X rating to ensure proper protection from the elements.
Learn more about snow melting systems. Perfect for heated driveways, patios, walkways and paths, accessibility ramps, or even stairs.
Specifications
Construction
| Color | Gray |
| Knockouts Available | No |
| Material | Polycarbonate |
Electrical
| Connection Method | Hardwired |
Logistics
| Country of Origin (COO) | United States of America |
Installation
| Cover Mounting | Screw Cover |
Identifiers
| SKU | SM-JBOX-IG-L |
| UPC (GTIN-12) | 881308078539 |
Product Dimensions
| Size | 8.25″ x 8.25″ x 7.75″ |
| Weight | 2.4 lbs |
Warranty / Certifications
| Warranty | 2 years |
| Waterproofing | NEMA 4X |
Documents & Manuals
Customer Questions & Answers
Snow Melting System Junction Boxes has 30 Questions and Answers.
How quickly do these systems melt the snow?
That depends on a number of variables (like the temperature outside) but generally speaking these snow melting systems are designed to melt 1" - 3" of snow per hour. Anything above 3" per hour is typically considered blizzard conditions.
Is it okay to cut the snow melting cable if it is too long for the application for which it was designed?
Never cut the heating cable. A heating cable will not work if it has been cut. If the heating cable is too long, call WarmlyYours to consult with a technician who will guide you in utilizing the additional length of cable.
How does the electric snow melting system compare to hot water tubing (hydronic) systems?
The material costs are similar. However, electric systems are easier to install, with fewer components and significantly lower maintenance costs. Electric systems will run for a shorter period of time to give the same level of performance but with much higher energy efficiency (typically 95%-98% efficient). Controls and sensors required for the two types of systems are very similar. Electric systems do not usually require slab insulation and do not create the concerns typically associated with hydronic systems. These concerns include, but are not limited to, return temperatures, flue gas venting, waterway shrinkage and property damage caused by leaking pipes or tubes.
May I cross or overlap the WarmlyYours snow melt heating cable?
When installing outdoor WarmlyYours snow melting cables for your driveway, patio, walkway, terrace, stairs, ramp, etc. - NEVER cross, overlap, or allow the heating cables to touch each other. Doing so will quickly cause a circuit failure due to excessive heat build up. Always follow the installation instructions and/or design layout plan to ensure the cable is installed with the correct spacing required for proper operation.
Does the factory splice need to be completely embedded during installation?
Yes. The manufacturer's splice that connects the heating element to the cold lead should be entirely embedded in a noncombustible material (like asphalt, concrete, or mortar) within the outdoor surface that is being heated.
View all 30 Questions and Answers
