Lava® Crystal 500w - 35ʺ X 25ʺ
- Wall Mounted: These radiant panels can be fixed to a wall horizontally or vertically on your wall and the hardwired installation (120V) presents a streamlined look without visible wires or cords
- Hardwired
- The hardwired electrical connection (120Vac) of the Lavas ensures that there will be no visible cords or plugs after installation
- Infrared radiant heating panels are a great way to give your home a bit of extra warmth and comfort
- Can be mounted to a wall horizontally or vertically
What Size Panel Do I Need?
A radiant heat panel is a great way to add supplemental heat to a room—not unlike a wall mounted space heater. The table below will help you identify the typical room size* that a radiant panel can help warm up, based on wattage/heat output.
| Radiant Panel Wattage* | Warming Coverage |
|---|---|
| 250W LAVA® | 36 sq. ft. |
| 350W LAVA® | 50 sq. ft. |
| 500W LAVA® | 71 sq. ft. |
| 750W LAVA® | 107 sq. ft. |
| 1000W LAVA® | 143 sq. ft. |
*This estimation is based on installing a radiant panel in a typical/average room. One factor that will impact the actual results is a room's degree of heat loss, which can be impacted by a number of factors including ceiling height, number of windows, and insulation level.
To get a free Heat Loss Calculation based on your room:

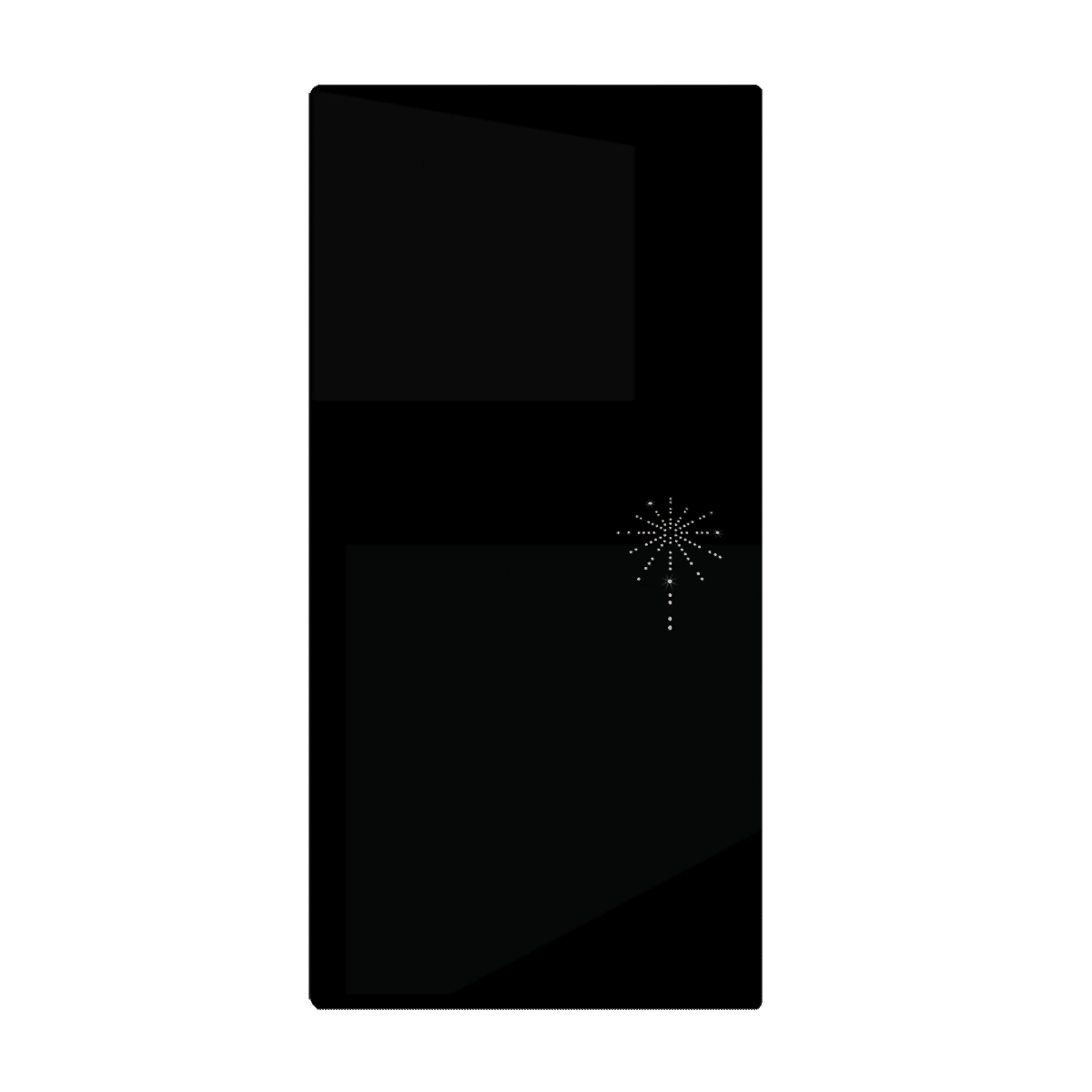

LAVA® Radiant Panels Crystal Description
The LAVA® Crystal is a masterpiece in its own right. Theultimate incarnation of form meeting function, this exquisite creation of glassand world-renowned Austrian Elements crystals is an elegant work of art thatbrings luxury and warmth to your home. Choose from two signature Austriandesigns. The 35” X 25” LAVA ® Crystal panels produce 500 W of radiant heatat 110 volts. Easily installed eithervertically or horizontally, the LAVA ® Crystal panels are C-UL-US Listed andinclude a 5-year warranty to ensure your satisfaction.
Specifications
Electrical
| Amps | 4.17 A |
| Connection Method | Hardwired |
| Ohms | 28.78 Ω |
| Thermal Power | 0.5 kW |
| Voltage | 120 V |
| Watts | 500 W |
Performance
| BTU Per Hour | 1706 Btu |
| Maximum Surface Temperature | 203 °F |
Appearance
| Finish | Matte Black |
| Version | Lava® Crystal - 35″ X 25″ |
Product Dimensions
| Installed Depth | 2.5″ |
| Length | 2′ 11″ |
| Size (Overall) | 35" x 25" (500W, 4.2A) |
| Weight | 48.1 lbs |
| Width | 2′ 1″ |
Identifiers
| Model | Crystal |
| SKU | IP-0500-LV-CR1-BTK |
| UPC (GTIN-12) | 881308073732 |
Controls
A great control is the secret to any great heating system.
Frequently Asked Questions
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
