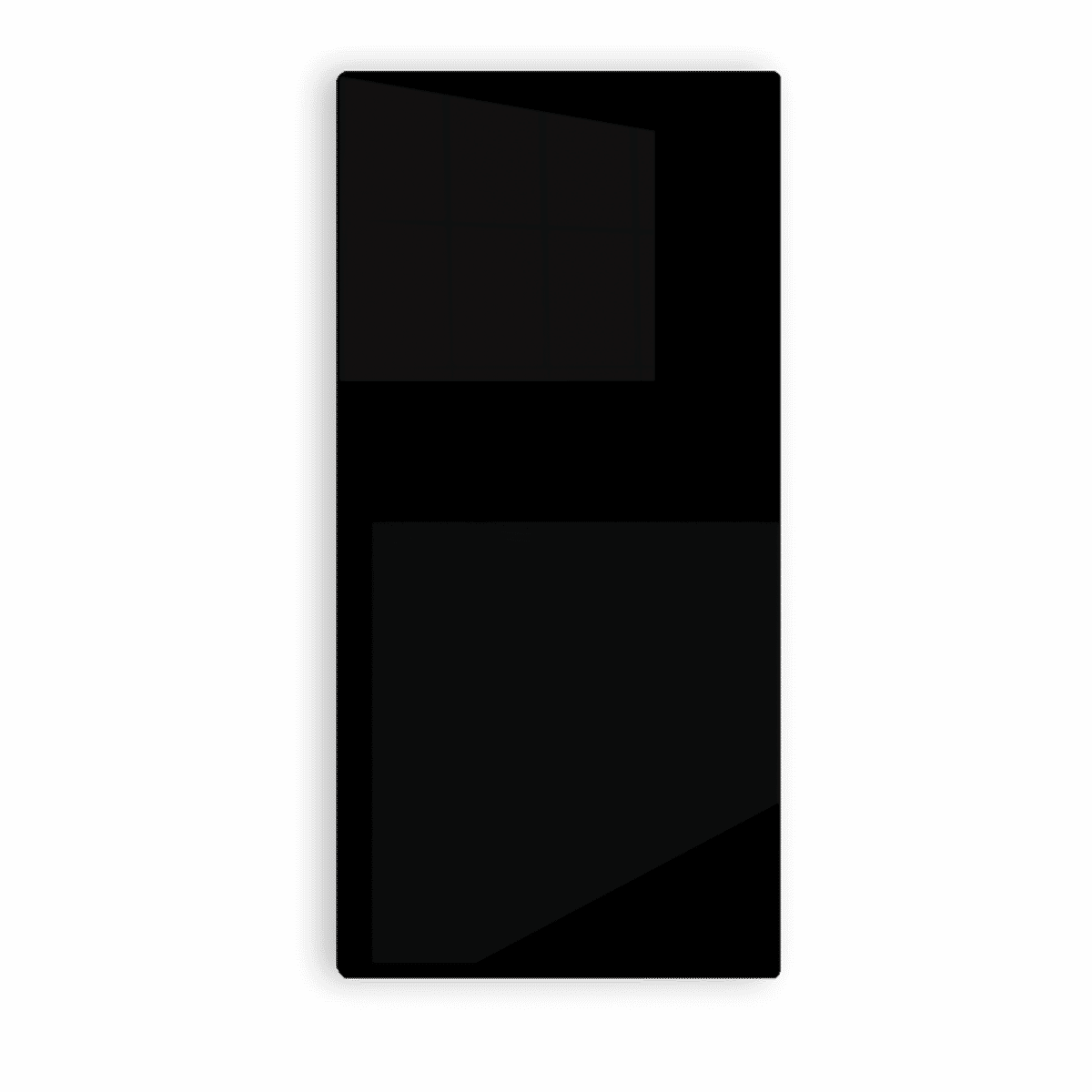

Lava Glass Black 500W - 35″ X 25″ - Refurbished
Features
-
Wall Mounted: These radiant panels can be fixed to a wall horizontally or vertically on your wall and the hardwired installation (120V) presents a streamlined look without visible wires or cords
-
Hardwired
-
The hardwired electrical connection (120Vac) of the Lavas ensures that there will be no visible cords or plugs after installation
-
Infrared radiant heating panels are a great way to give your home a bit of extra warmth and comfort
-
Can be mounted to a wall horizontally or vertically
LAVA® Radiant Panels Glass Description
LAVA ® Glass Radiant Panels addstyle to any décor while providing radiant comfort where your want it. These easy-to-installpanels can be positioned either horizontally or vertically. The sleek, blackLAVA ® panels are available by special order and come with a lustrous finish, orsatin finish by request. The 35” X 25” LAVA ® Glass Radiant Panels generate 500 W,making them ideal for providing auxiliary heat in smaller areas. Featuring a5-year warranty, the LAVA® Glass panels operate on 110 volts and are C-UL-USListed.
Specifications
Electrical
| Amps | 4.17 A |
| Connection Method | Hardwired |
| Ohms | 28.78 Ω |
| Thermal Power | 0.5 kW |
| Voltage | 120 V |
| Watts | 500 W |
Performance
| BTU Per Hour | 1706 Btu |
| Maximum Surface Temperature | 203 °F |
Logistics
| Country of Origin (COO) | Austria |
Appearance
| Finish | Black |
| Version | Lava® Glass Black - 35″ X 25″ |
Product Dimensions
| Installed Depth | 2.5″ |
| Length | 2′ 11″ |
| Size (Overall) | 35" x 25" (500W, 4.2A) |
| Weight | 48.1 lbs |
| Width | 2′ 1″ |
Identifiers
| Model | Glass |
| SKU | IP-0500-LV-BLA-BTK |
| UPC (GTIN-12) | 881308073329 |
Controls
A great control is the secret to any great heating system.
Accessories and Spare Parts
Feel free to chat us if you have any questions about these items.
Documents & Manuals
Customer Questions & Answers
LAVA® Radiant Panels Glass has 24 Questions and Answers.
How far from the radiant panel will the heat substantially radiate and where should it be aimed?
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
How do you keep a sunroom warm in the winter?
Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.
How far from the radiant panel will the heat substantially radiate and where should it be aimed?
Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.
How does one know which size panel is correct for a room?
If you have a room with "average" insulation levels, take the square footage and multiply it by 7 or 8 watts per square foot. That will provide a good estimate of the watts needed to heat that space.
Is there a concern with children touching the radiant panels if they get too hot?
Radiant panels using infrared heating can get very hot on the surface (up to 248° F). For safety, it is recommended that your radiant panel be mounted out of the reach of children.
View all 24 Questions and Answers
