Snow Melting Accessories
When you purchase a snow melting system from WarmlyYours, there are a few additional products that will help during your installation process. It's best to be prepared, so you'll want to consider having these helpful accessories on hand. When it comes to a hassle-free, smooth installation process, these accessories can ensure a headache-free install and even increase the life of your snow melting system.
Snow Melting Accessories

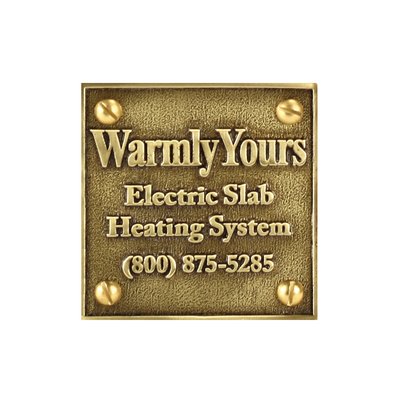

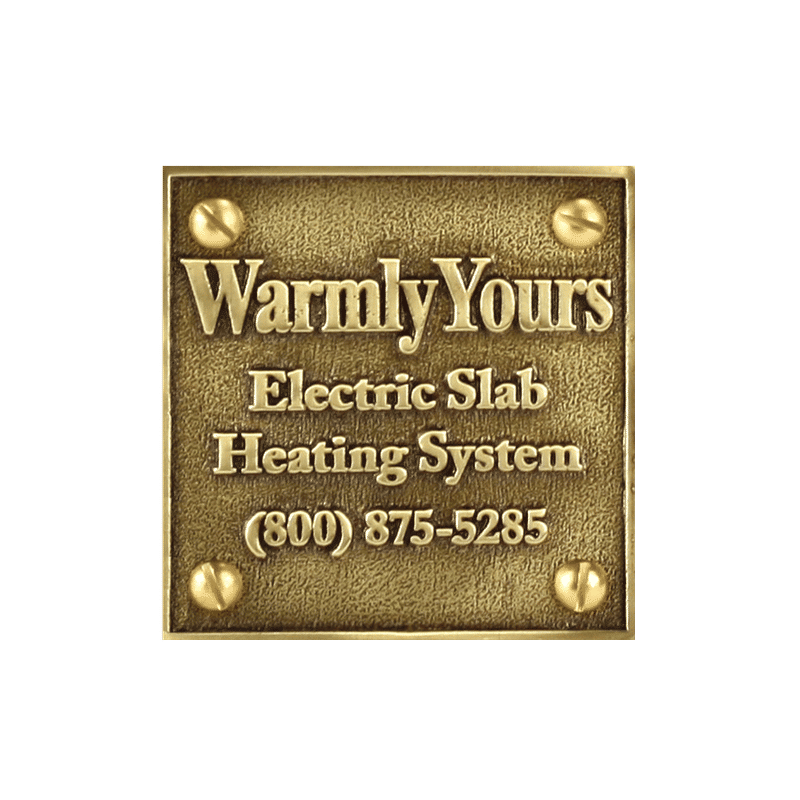

WarmlyYours’ Snow Melt Plaque to stay compliant with National Electric Code 426-13.

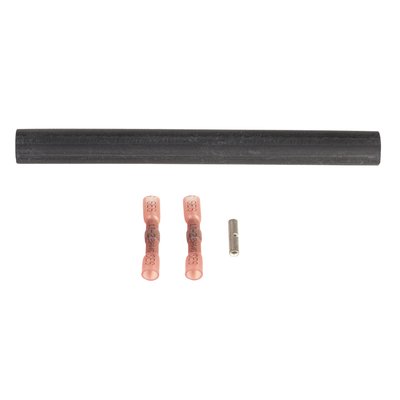

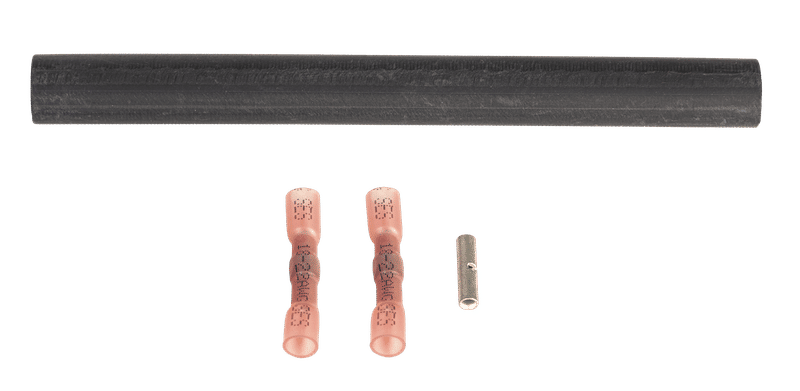

This kit is used for repairing damaged electric snow melting heating elements.
-
Butt Splice Connector
-
Sealed Crimp & Solder Butt Splice Connector
-
Black Flexible Adhesive-Lined Heat Shrink

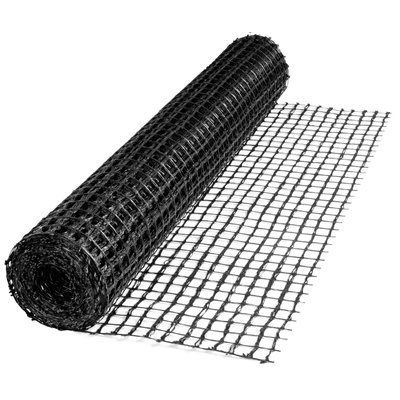

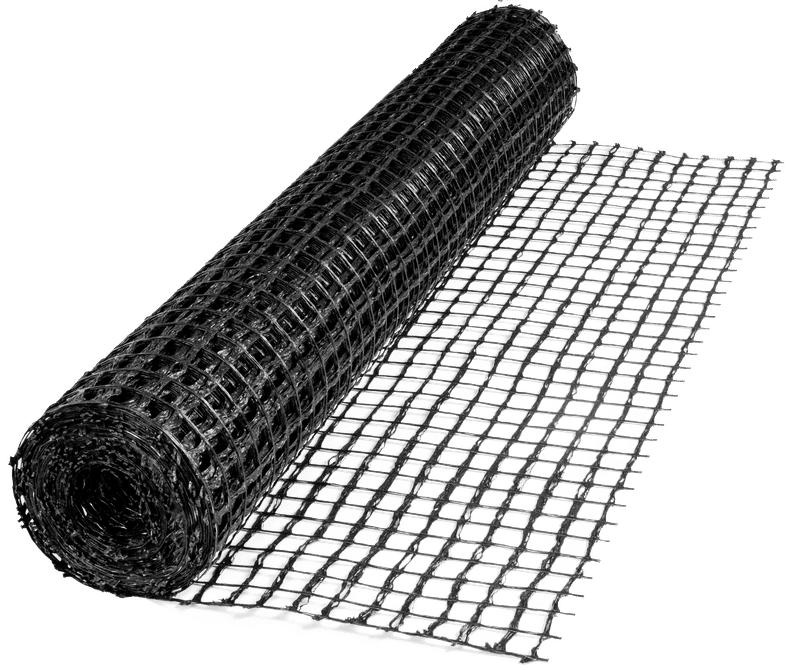

The primary use of this embeddable grid is to provide a framework to attach snow melting cables to.
-
For installing snow melting cables under pavers or on top of existing concrete surfaces
-
Helps to maintain proper depth and spacing for snow melting heating elements
-
1" x 1" square grid pattern allows for quick cable attachment and design flexibility
-
Lightweight and durable with a high degree of bi-directional expansion strength
-
Should not be used for asphalt or new pour concrete projects
Snow Melting System Junction Boxes
Our molded, non-metallic junction boxes can be used in combination with a WarmlyYours snow melting system. This device serves as an intermediary if the cold leads from your snow melting heating elements are too short to reach your relay panel.

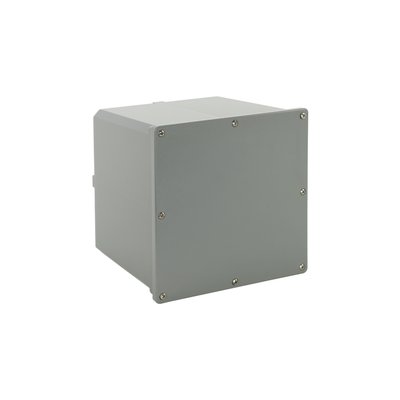

This junction box can accommodate between 3 to 8 cold leads. It features in-ground installation with a NEMA 4X rating.
-
NEMA 4X outdoor rated for durability
-
Compatible with WarmlyYours systems
-
In-ground or wall-mounted options
-
Weather-resistant protection
-
Ideal for short cold leads

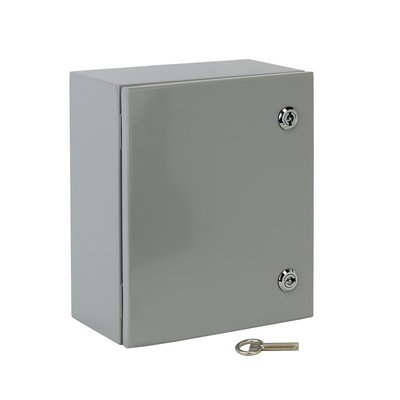

This junction box can accommodate up to 8 cold leads. It features wall-mounted installation with a NEMA 4X rating.
-
NEMA 4X outdoor rated for durability
-
Compatible with WarmlyYours systems
-
In-ground or wall-mounted options
-
Weather-resistant protection
-
Ideal for short cold leads
This junction box can accommodate between 1 or 2 cold leads. It features in-ground installation with a NEMA 4X rating.
-
NEMA 4X outdoor rated for durability
-
Compatible with WarmlyYours systems
-
In-ground or wall-mounted options
-
Weather-resistant protection
-
Ideal for short cold leads
Relay Panels
Designed for efficient power management in snow melting, slab heating, and roof deicing applications, our relay panels act as a reliable intermediary between your control systems and the heating elements. These cULus approved relay panels feature a NEMA 1 indoor enclosure, come with conduit knockouts for easy installation, operate virtually silently, and are rated for 120 to 277 VAC heating elements with individual relay ratings up to 30 Amps.
Small relay panel designed for use with snow melting, slab heating, and roof deicing applications.
-
Comes with 4 poles (two 2-pole pairs)
-
Each of the 2 relays in the RLY-4PL-CC are rated for up to 30 Amps
-
Designed for use with snow melting, slab heating, and roof and gutter deicing systems
-
Safe: cULus approved and NEMA 1-rated metal enclosure
-
Limited 2-year warranty
The medium-sized RLY-8PL-CC power relays are rated for up to 30 Amps and housed in NEMA 1 indoor enclosures.
-
Comes with 8 poles (four 2-pole pairs)
-
Each of the 4 relays in the RLY-8PL-CC are rated for up to 30 Amps
-
Designed for use with snow melting, slab heating, and roof and gutter deicing systems
-
Safe: cULus approved and NEMA 1-rated metal enclosure
-
Limited 2-year warranty
Large ultra-silent, power-switching panel suitable for snow melting, slab heating and roof deicing applications.
-
Comes with 12 poles (six 2-pole pairs)
-
Each of the 6 relays in the RLY-12PL-CC are rated for up to 30 Amps
-
Designed for use with snow melting, slab heating, and roof and gutter deicing systems
-
Safe: cULus approved and NEMA 1-rated metal enclosure
-
Limited 2-year warranty
